Architecture
The PL/SQL runtime system is a technology, not an independent product. Think of this technology as an engine that executes PL/SQL blocks and subprograms. The engine can be installed in an Oracle Server or in an application development tool such as Oracle Forms or Oracle Reports. So, PL/SQL can reside in two environments:

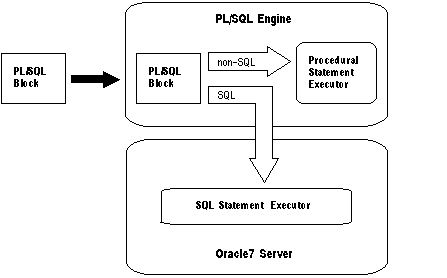

These two environments are independent. PL/SQL might be available in the Oracle Server but unavailable in tools, or the other way around. In either environment, the PL/SQL engine accepts as input any valid PL/SQL block or subprogram. Figure 1 - 4 shows the PL/SQL engine processing an anonymous block.
Figure 1 - 4. PL/SQL Engine
The PL/SQL engine executes procedural statements but sends SQL statements to the SQL Statement Executor in the Oracle Server.
In the Oracle Server
Application development tools that lack a local PL/SQL engine must rely on Oracle to process PL/SQL blocks and subprograms. When it contains the PL/SQL engine, an Oracle Server can process PL/SQL blocks and subprograms as well as single SQL statements. The Oracle Server passes the blocks and subprograms to its local PL/SQL engine.
Anonymous Blocks
Anonymous PL/SQL blocks can be embedded in an Oracle Precompiler or OCI program. At run time, the program, lacking a local PL/SQL engine, sends these blocks to the Oracle Server, where they are compiled and executed. Likewise, interactive tools such as SQL*Plus and Server Manager, lacking a local PL/SQL engine, must send anonymous blocks to Oracle.
Stored Subprograms
Named PL/SQL blocks (subprograms) can be compiled separately and stored permanently in an Oracle database, ready to be executed. A subprogram explicitly CREATEd using an Oracle tool is called a stored subprogram. Once compiled and stored in the data dictionary, it is a database object, which can be referenced by any number of applications connected to that database.
Stored subprograms defined within a package are called packaged subprograms; those defined independently are called standalone subprograms. (Subprograms defined within another subprogram or within a PL/SQL block are called local subprograms. They cannot be referenced by other applications and exist only for the convenience of the enclosing block.)
Stored subprograms offer higher productivity, better performance, memory savings, application integrity, and tighter security. For
example, by designing applications around a library of stored procedures and functions, you can avoid redundant coding and
increase your productivity.
You can call stored subprograms from a database trigger, another stored subprogram, an Oracle Precompiler application, an OCI application, or interactively from SQL*Plus or Server Manager. For example, you might call the standalone procedure create_dept from SQL*Plus as follows:
SQL> EXECUTE create_dept('FINANCE', 'NEW YORK');
Subprograms are stored in parsed, compiled form. So, when called, they are loaded and passed to the PL/SQL engine immediately. Moreover, stored subprograms take advantage of the Oracle shared memory capability. Only one copy of a subprogram need be loaded into memory for execution by multiple users.
Database Triggers
A database trigger is a stored subprogram associated with a table. You can have Oracle automatically fire the database trigger before or after an INSERT, UPDATE, or DELETE statement affects the table. One of the many uses for database triggers is to audit data modifications. For example, the following database trigger fires whenever salaries in the emp table are updated:
CREATE TRIGGER audit_sal
AFTER UPDATE OF sal ON emp
FOR EACH ROW
BEGIN
INSERT INTO emp_audit VALUES ...
END;
You can use all the SQL data manipulation statements and any procedural statement in the executable part of a database trigger.
In Oracle Tools
When it contains the PL/SQL engine, an application development tool can process PL/SQL blocks. The tool passes the blocks to its local PL/SQL engine. The engine executes all procedural statements at the application site and sends only SQL statements to Oracle. Thus, most of the work is done at the application site, not at the server site.
Furthermore, if the block contains no SQL statements, the engine executes the entire block at the application site. This is useful if your application can benefit from conditional and iterative control.
Frequently, Oracle Forms applications use SQL statements merely to test the value of field entries or to do simple computations. By using PL/SQL instead, you can avoid calls to the Oracle Server. Moreover, you can use PL/SQL functions to manipulate field entries.
