Main Features

A good way to get acquainted with PL/SQL is to look at a sample program. The program below processes an order for tennis rackets. First, it declares a variable of type NUMBER to store the quantity of tennis rackets on hand. Then, it retrieves the quantity on hand from a database table named inventory. If the quantity is greater than zero, the program updates the table and inserts a purchase record into another table named purchase_record. Otherwise, the program inserts an out-of-stock record into the purchase_record table.

-- available online in file EXAMP1
DECLARE
   qty_on_hand  NUMBER(5);
BEGIN
   SELECT quantity INTO qty_on_hand FROM inventory
      WHERE product = 'TENNIS RACKET'
      FOR UPDATE OF quantity;
   IF qty_on_hand > 0 THEN  -- check quantity
      UPDATE inventory SET quantity = quantity - 1
         WHERE product = 'TENNIS RACKET';
      INSERT INTO purchase_record
         VALUES ('Tennis racket purchased', SYSDATE);
   ELSE
      INSERT INTO purchase_record
         VALUES ('Out of tennis rackets', SYSDATE);
   END IF;
   COMMIT;
END;

With PL/SQL, you can use SQL statements to manipulate Oracle data and flow-of-control statements to process the data. Moreover, you can declare constants and variables, define procedures and functions, and trap runtime errors. Thus, PL/SQL combines the data manipulating power of SQL with the data processing power of procedural languages.

Block Structure

PL/SQL is a block-structured language. That is, the basic units (procedures, functions, and anonymous blocks) that make up a PL/SQL program are logical blocks, which can contain any number of nested sub-blocks. Typically, each logical block corresponds to a problem or subproblem to be solved. Thus, PL/SQL supports the divide-and- conquer approach to problem solving called stepwise refinement.

A block (or sub-block) lets you group logically related declarations and statements. That way, you can place declarations close to where they are used. The declarations are local to the block and cease to exist when the block completes.

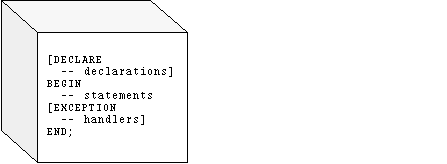

As Figure 1 - 1 shows, a PL/SQL block has three parts: a declarative part, an executable part, and an exception-handling part. (In PL/SQL, a warning or error condition is called an exception.) Only the executable part is required.

The order of the parts is logical. First comes the declarative part, in which objects can be declared. Once declared, objects can be manipulated in the executable part. Exceptions raised during execution can be dealt with in the exception-handling part.

Figure 1 - 1. Block Structure

You can nest sub-blocks in the executable and exception-handling parts of a PL/SQL block or subprogram but not in the declarative part. Also, you can define local subprograms in the declarative part of any block. However, you can call local subprograms only from the block in which they are defined.

Variables and Constants

PL/SQL allows you to declare constants and variables, then use them in SQL and procedural statements anywhere an expression can be used. However, forward references are not allowed. So, you must declare a constant or variable before referencing it in other statements, including other declarative statements.

Declaring Variables

Variables can have any SQL datatype, such as CHAR, DATE, and NUMBER, or any PL/SQL datatype, such as BOOLEAN and BINARY_INTEGER. For example, assume that you want to declare a variable named part_no to hold 4-digit numbers and a variable named in_stock to hold the Boolean value TRUE or FALSE. You declare these variables as follows:

part_no  NUMBER(4);
in_stock BOOLEAN;

You can also declare records and PL/SQL tables using the RECORD and TABLE composite datatypes.

Assigning Values to a Variable

You can assign values to a variable in two ways. The first way uses the assignment operator (:=), a colon followed by an equal sign. You place the variable to the left of the operator and an expression to the right. Some examples follow:

tax := price * tax_rate;
bonus := current_salary * 0.10;
amount := TO_NUMBER(SUBSTR('750 dollars', 1, 3));
valid := FALSE;

The second way to assign values to a variable is to select or fetch database values into it. In the following example, you have Oracle compute a 10% bonus when you select the salary of an employee:

SELECT sal * 0.10 INTO bonus FROM emp WHERE empno = emp_id;

Then, you can use the variable bonus in another computation or insert its value into a database table.

Declaring Constants

Declaring a constant is like declaring a variable except that you must add the keyword CONSTANT and immediately assign a value to the constant. Thereafter, no more assignments to the constant are allowed. In the following example, you declare a constant named credit_limit:

credit_limit CONSTANT REAL := 5000.00;

Cursors

Oracle uses work areas to execute SQL statements and store processing information. A PL/SQL construct called a cursor lets you name a work area and access its stored information. There are two kinds of cursors: implicit and explicit. PL/SQL implicitly declares a cursor for all SQL data manipulation statements, including queries that return only one row. For queries that return more than one row, you can explicitly declare a cursor to process the rows individually. An example follows:

DECLARE
   CURSOR c1 IS
      SELECT empno, ename, job FROM emp WHERE deptno = 20;

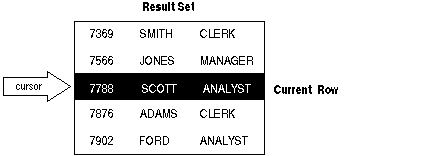

The set of rows returned by a multi-row query is called the result set. Its size is the number of rows that meet your search criteria. As Figure 1 - 2 shows, an explicit cursor "points" to the current row in the result set. This allows your program to process the rows one at a time.

Figure 1 - 2. Query Processing

Multi-row query processing is somewhat like file processing. For example, a COBOL program opens a file, processes records, then closes the file. Likewise, a PL/SQL program opens a cursor, processes rows returned by a query, then closes the cursor. Just as a file pointer marks the current position in an open file, a cursor marks the current position in a result set.

You use the OPEN, FETCH, and CLOSE statements to control a cursor. The OPEN statement executes the query associated with the cursor, identifies the result set, and positions the cursor before the first row. The FETCH statement retrieves the current row and advances the cursor to the next row. When the last row has been processed, the CLOSE statement disables the cursor.

Cursor FOR Loops

In most situations that require an explicit cursor, you can simplify coding by using a cursor FOR loop instead of the OPEN, FETCH, and CLOSE statements.

A cursor FOR loop implicitly declares its loop index as a record that represents a row in a database table, opens a cursor, repeatedly fetches rows of values from the result set into fields in the record, then closes the cursor when all rows have been processed. In the following example, the cursor FOR loop implicitly declares emp_rec as a record:

DECLARE
   CURSOR c1 IS
      SELECT ename, sal, hiredate, deptno FROM emp;
   ...
BEGIN
   FOR emp_rec IN c1 LOOP
      ...
      salary_total :=  salary_total + emp_rec.sal;
   END LOOP;
END;

You use dot notation to reference individual fields in the record.

Cursor Variables

Like a cursor, a cursor variable points to the current row in the result set of a multi-row query. But, unlike a cursor, a cursor variable can be opened for any type-compatible query. It is not tied to a specific query. Cursor variables are true PL/SQL variables, to which you can assign new values and which you can pass to subprograms stored in an Oracle database. This gives you more flexibility and a convenient way to centralize data retrieval.

Typically, you open a cursor variable by passing it to a stored procedure that declares a cursor variable as one of its formal parameters. The following packaged procedure opens the cursor variable generic_cv for the chosen query:

CREATE PACKAGE BODY emp_data AS
   PROCEDURE open_cv (generic_cv IN OUT GenericCurTyp,
                      choice     IN NUMBER) IS
   BEGIN
      IF choice = 1 THEN
         OPEN generic_cv FOR SELECT * FROM emp;
      ELSIF choice = 2 THEN
         OPEN generic_cv FOR SELECT * FROM dept;
      ELSIF choice = 3 THEN
         OPEN generic_cv FOR SELECT * FROM salgrade;
      END IF;
   END open_cv;
END emp_data;

Attributes

PL/SQL variables and cursors have attributes, which are properties that let you reference the datatype and structure of an object without repeating its definition. Database columns and tables have similar attributes, which you can use to ease maintenance.

%TYPE

The %TYPE attribute provides the datatype of a variable or database column. This is particularly useful when declaring variables that will hold database values. For example, assume there is a column named title in a table named books. To declare a variable named my_title having the same datatype as the column title, you use dot notation and the %TYPE attribute, as follows:

my_title books.title%TYPE;

Declaring my_title with %TYPE has two advantages. First, you need not know the exact datatype of title. Second, if you change the database definition of title (make it a longer character string, for example), the datatype of my_title changes accordingly at run time.

%ROWTYPE

In PL/SQL, records are used to group data. A record consists of a number of related fields in which data values can be stored. The %ROWTYPE attribute provides a record type that represents a row in a table. The record can store an entire row of data selected from the table or fetched from a cursor or cursor variable.

Columns in a row and corresponding fields in a record have the same names and datatypes. In the example below, you declare a record named dept_rec. Its fields have the same names and datatypes as the columns in the dept table.

DECLARE
   dept_rec dept%ROWTYPE;  -- declare record variable

You use dot notation to reference fields, as the following example shows:

my_deptno := dept_rec.deptno;

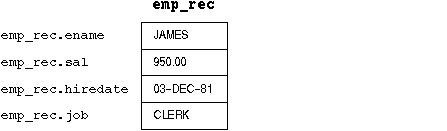

If you declare a cursor that retrieves the last name, salary, hire date, and job title of an employee, you can use %ROWTYPE to declare a record that stores the same information, as follows:

DECLARE
   CURSOR c1 IS SELECT ename, sal, hiredate, job FROM emp;
   emp_rec c1%ROWTYPE;  -- declare record variable that
                        -- represents a row in the emp table

When you execute the statement

FETCH c1 INTO emp_rec;

the value in the ename column of the emp table is assigned to the ename field of emp_rec, the value in the sal column is assigned to the sal field, and so on. Figure 1 - 3 shows how the result might appear.

Figure 1 - 3. %ROWTYPE Record

Control Structures

Control structures are the most important PL/SQL extension to SQL. Not only does PL/SQL let you manipulate Oracle data, it lets you process the data using conditional, iterative, and sequential flow-of-control statements such as IF-THEN-ELSE, FOR-LOOP, WHILE-LOOP, EXIT-WHEN, and GOTO. Collectively, these statements can handle any situation.

Conditional Control

Often, it is necessary to take alternative actions depending on circumstances. The IF-THEN-ELSE statement lets you execute a sequence of statements conditionally. The IF clause checks a condition; the THEN clause defines what to do if the condition is true; the ELSE clause defines what to do if the condition is false or null.

Consider the program below, which processes a bank transaction. Before allowing you to withdraw $500 from account 3, it makes sure the account has sufficient funds to cover the withdrawal. If the funds are available, the program debits the account; otherwise, the program inserts a record into an audit table.

-- available online in file EXAMP2
DECLARE
   acct_balance NUMBER(11,2);
   acct         CONSTANT NUMBER(4) := 3;
   debit_amt    CONSTANT NUMBER(5,2) := 500.00;
BEGIN
   SELECT bal INTO acct_balance FROM accounts
      WHERE account_id = acct
      FOR UPDATE OF bal;
   IF acct_balance >= debit_amt THEN
      UPDATE accounts SET bal = bal - debit_amt
         WHERE account_id = acct;
   ELSE
      INSERT INTO temp VALUES
         (acct, acct_balance, 'Insufficient funds');
             -- insert account, current balance, and message
   END IF;
   COMMIT;
END;

A sequence of statements that uses query results to select alternative actions is common in database applications. Another common sequence inserts or deletes a row only if an associated entry is found in another table. You can bundle these common sequences into a PL/SQL block using conditional logic. This can improve performance and simplify the integrity checks built into Oracle Forms applications.

Iterative Control

LOOP statements let you execute a sequence of statements multiple times. You place the keyword LOOP before the first statement in the sequence and the keywords END LOOP after the last statement in the sequence. The following example shows the simplest kind of loop, which repeats a sequence of statements continually:

LOOP
   -- sequence of statements
END LOOP;

The FOR-LOOP statement lets you specify a range of integers, then execute a sequence of statements once for each integer in the range. For example, suppose that you are a manufacturer of custom-made cars and that each car has a serial number. To keep track of which customer buys each car, you might use the following FOR loop:

FOR i IN 1..order_qty LOOP
   UPDATE sales SET custno = customer_id
      WHERE serial_num = serial_num_seq.NEXTVAL;
END LOOP;

The WHILE-LOOP statement associates a condition with a sequence of statements. Before each iteration of the loop, the condition is evaluated. If the condition yields TRUE, the sequence of statements is executed, then control resumes at the top of the loop. If the condition yields FALSE or NULL, the loop is bypassed and control passes to the next statement.

In the following example, you find the first employee who has a salary over $4000 and is higher in the chain of command than employee 7902:

-- available online in file EXAMP3
DECLARE
   salary         emp.sal%TYPE;
   mgr_num        emp.mgr%TYPE;
   last_name      emp.ename%TYPE;
   starting_empno CONSTANT NUMBER(4) := 7902;
BEGIN
   SELECT sal, mgr INTO salary, mgr_num FROM emp
      WHERE empno = starting_empno;
   WHILE salary < 4000 LOOP
      SELECT sal, mgr, ename INTO salary, mgr_num, last_name
         FROM emp WHERE empno = mgr_num;
   END LOOP;
   INSERT INTO temp VALUES (NULL, salary, last_name);
   COMMIT;
END;

The EXIT-WHEN statement lets you complete a loop if further processing is impossible or undesirable. When the EXIT statement is encountered, the condition in the WHEN clause is evaluated. If the condition yields TRUE, the loop completes and control passes to the next statement. In the following example, the loop completes when the value of total exceeds 25,000:

LOOP
   ...
   total := total + salary;
   EXIT WHEN total > 25000;  -- exit loop if condition is true
END LOOP;
-- control resumes here

Sequential Control

The GOTO statement lets you branch to a label unconditionally. The label, an undeclared identifier enclosed by double angle brackets, must precede an executable statement or a PL/SQL block. When executed, the GOTO statement transfers control to the labeled statement or block, as the following example shows:

IF rating > 90 THEN
   GOTO calc_raise;  -- branch to label
END IF;
...
<<calc_raise>>
IF job_title = 'SALESMAN' THEN  -- control resumes here
   amount := commission * 0.25;
ELSE
   amount := salary * 0.10;
END IF;

PL/SQL Tables

Like an array, a PL/SQL table is an ordered collection of elements of the same type. Each element has a unique index number that determines its position in the ordered collection. But, unlike an array, a PL/SQL table is unbounded. So, its size can increase dynamically. Also, it does not require consecutive index numbers. So, it can be indexed by any series of integers.

PL/SQL tables help you move bulk data. They can store columns or rows of Oracle data, and they can be passed as parameters. So, PL/SQL tables make it easy to move collections of data into and out of database tables or between client-side applications and stored subprograms.

You can use a cursor FOR loop to fetch an entire column or table of Oracle data into a PL/SQL table. In the following example, you fetch a table of data into the PL/SQL table dept_tab:

DECLARE
   TYPE DeptTabTyp IS TABLE OF dept%ROWTYPE
      INDEX BY BINARY_INTEGER;
   dept_tab DeptTabTyp;
   n BINARY_INTEGER := 0;
BEGIN
   FOR dept_rec IN (SELECT * FROM dept) LOOP
      n := n + 1;
      dept_tab(n) := dept_rec;
   END LOOP;
   ...
END;

User-Defined Records

You can use the %ROWTYPE attribute to declare a record that represents a row in a table or a row fetched from a cursor. But, with a user-defined record, you can declare fields of your own.

Records contain uniquely named fields, which can have different datatypes. Suppose you have various data about an employee such as name, salary, and hire date. These items are dissimilar in type but logically related. A record containing a field for each item lets you treat the data as a logical unit. Consider the following example:

DECLARE
   TYPE TimeTyp IS RECORD (minute SMALLINT, hour SMALLINT);
   TYPE MeetingTyp IS RECORD (
      day     DATE,
      time    TimeTyp,  -- nested record
      place   VARCHAR2(20),
      purpose VARCHAR2(50));

Notice that you can nest records. That is, a record can be the component of another record.

Modularity

Modularity lets you break an application down into manageable, well-defined logic modules. Through successive refinement, you can reduce a complex problem to a set of simple problems that have easy-to-implement solutions. PL/SQL meets this need with program units. Besides blocks and subprograms, PL/SQL provides the package, which allows you to group related program objects into larger units.

Subprograms

PL/SQL has two types of subprograms called procedures and functions, which can take parameters and be invoked (called). As the following example shows, a subprogram is like a miniature program, beginning with a header followed by an optional declarative part, an executable part, and an optional exception-handling part:

PROCEDURE award_bonus (emp_id NUMBER) IS
   bonus        REAL;
   comm_missing EXCEPTION;
BEGIN
   SELECT comm * 0.15 INTO bonus FROM emp WHERE empno = emp_id;
   IF bonus IS NULL THEN
      RAISE comm_missing;
   ELSE
      UPDATE payroll SET pay = pay + bonus WHERE empno = emp_id;
   END IF;
EXCEPTION
   WHEN comm_missing THEN
      ...
END award_bonus;

When called, this procedure accepts an employee number. It uses the number to select the employee's commission from a database table and, at the same time, compute a 15% bonus. Then, it checks the bonus amount. If the bonus is null, an exception is raised; otherwise, the employee's payroll record is updated.

Packages

PL/SQL lets you bundle logically related types, program objects, and subprograms into a package. Each package is easy to understand and the interfaces between packages are simple, clear, and well defined. This aids application development.

Packages usually have two parts: a specification and a body. The specification is the interface to your applications; it declares the types, constants, variables, exceptions, cursors, and subprograms available for use. The body defines cursors and subprograms and so implements the specification.

In the following example, you package two employment procedures:

CREATE PACKAGE emp_actions AS  -- package specification
   PROCEDURE hire_employee (empno NUMBER, ename CHAR, ...);
   PROCEDURE fire_employee (emp_id NUMBER);
END emp_actions;

CREATE PACKAGE BODY emp_actions AS  -- package body
   PROCEDURE hire_employee (empno NUMBER, ename CHAR, ...) IS
   BEGIN
      INSERT INTO emp VALUES (empno, ename, ...);
   END hire_employee;
   PROCEDURE fire_employee (emp_id NUMBER) IS
   BEGIN
      DELETE FROM emp WHERE empno = emp_id;
   END fire_employee;
END emp_actions;

Only the declarations in the package specification are visible and accessible to applications. Implementation details in the package body are hidden and inaccessible.

Packages can be compiled and stored in an Oracle database, where their contents can be shared by many applications. When you call a packaged subprogram for the first time, the whole package is loaded into memory. So, subsequent calls to related subprograms in the package require no disk I/O. Thus, packages can enhance productivity and improve performance.

Information Hiding

With information hiding, you see only the details that are relevant at a given level of algorithm and data structure design. Information hiding keeps high-level design decisions separate from low-level design details, which are more likely to change.

Algorithms

You implement information hiding for algorithms through top-down design. Once you define the purpose and interface specifications of a low-level procedure, you can ignore the implementation details. They are hidden at higher levels. For example, the implementation of a procedure named raise_salary is hidden. All you need to know is that the procedure will increase a specific employee salary by a given amount. Any changes to the definition of raise_salary are transparent to calling applications.

Data Structures

You implement information hiding for data structures though data encapsulation. By developing a set of utility subprograms for a data structure, you insulate it from users and other developers. That way, other developers know how to use the subprograms that operate on the data structure but not how the structure is represented.

With PL/SQL packages, you can specify whether types, program objects, and subprograms are public or private. Thus, packages enforce data encapsulation by letting you put type declarations in a black box. A private type definition is hidden and inaccessible. Only the package, not your application, is affected if the definition changes. This simplifies maintenance and enhancement.

Error Handling

PL/SQL makes it easy to detect and process predefined and user-defined error conditions called exceptions. When an error occurs, an exception is raised. That is, normal execution stops and control transfers to the exception-handling part of your PL/SQL block or subprogram. To handle raised exceptions, you write separate routines called exception handlers.

Predefined exceptions are raised implicitly by the runtime system. For example, if you try to divide a number by zero, PL/SQL raises the predefined exception ZERO_DIVIDE automatically. You must raise user-defined exceptions explicitly with the RAISE statement.

You can define exceptions of your own in the declarative part of any PL/SQL block or subprogram. In the executable part, you check for the condition that needs special attention. If you find that the condition exists, you execute a RAISE statement. In the example below, you compute the bonus earned by a salesperson. The bonus is based on salary and commission. So, if the commission is null, you raise the exception comm_missing.

DECLARE
   salary       NUMBER(7,2);
   commission   NUMBER(7,2);
   comm_missing EXCEPTION;  -- declare exception
BEGIN
   SELECT sal, comm INTO salary, commission FROM emp
      WHERE empno = :emp_id;
   IF commission IS NULL THEN
      RAISE comm_missing;  -- raise exception
   ELSE
       :bonus := (salary * 0.05) + (commission * 0.15);
   END IF;
EXCEPTION  -- begin exception handlers
   WHEN comm_missing THEN
       -- process error
END;

The variables emp_id and bonus are declared and assigned values in a host environment. For more information about host variables, see "Oracle Precompiler Environment" [*].
