6
Administering a Replicated Environment

This chapter describes how to administer your replicated database environment. The topics include the following:

Advanced Management of Master and Snapshot Groups

Chapters 3 and 4 in this book discuss the most commonly performed procedures that you use to manage master and snapshot groups in an advanced replication environment. The following sections explain several less commonly used administrative procedures that involve the management of master and snapshot groups.

Executing DDL Within a Master Group

Replication Manager lets you propagate one or more SQL DDL statements to some or all of the master sites in a master group. This option lets you execute unique DDL that is not specifically supported within Oracle's replication management API. For example, you might want to create rollback segments and users that are necessary to support a replication environment.

Warning: Do not execute DDL that could damage global database integrity in a multimaster environment. For example, do not execute DDL statements to alter a replication object at any site.

To execute DDL at selected master sites in a master group:

Click the target master group at its master definition site.
Click the Properties toolbar button.
Click the Operations page of the Edit Master Group property sheet.
Click Execute DDL.
Use the Execute DDL dialog to execute DDL statements at selected destinations.

API Equivalent: DBMS_REPCAT.EXECUTE_DDL

Validating a Master Group

To validate the integrity of a master group across all master sites in a multimaster replication environment, you can validate the master group. To validate a master group:

Click the target master group at its master definition site.
Click the Properties toolbar button.
Click the Validation page of the Edit Master Group property sheet.

The Validation page lets you target specific items to validate, including:

The replication support and validity of objects in the master group.
The existence and scheduling of the master group's scheduled links.

When you are ready to validate the master group, Click Validate.

Relocating a Master Group's Definition Site

If the master definition site of a master group becomes unavailable or you simply want to relocate the master destination site for the group:

Click the target master group at any master site.
Click the Properties toolbar button.
Click the Destinations page of the Edit Master Group property sheet.
Click Change to change the groups master definition site.
Use the Change Masterdef dialog to change the group's master definition site.

When you relocate the master definition site for a master group, you can choose to notify:

All other master sites.
The current master definition site-uncheck this setting when the current master definition site is unavailable.

API Equivalent: DBMS_REPCAT.RELOCATE_MASTERDEF

Changing a Snapshot Group's Master Site

To change the master site of a snapshot group to another master site, call the SWITCH_SNAPSHOT_MASTER procedure in the DBMS_REPCAT package, as shown in the following example:

DBMS_REPCAT.SWITCH_SNAPSHOT_MASTER(
     gname           =>   'sales',
     master          =>   'dbs2.acme.com'
     execute_as_user  =>   'FALSE');

In this example, the master site for the ACCT object group is changed to the DBS2 master site.

You must call this procedure at the snapshot site whose master site you want to change. The new database must be a master site in the replicated environment.

When you call this procedure, Oracle uses the new master to perform a full refresh of each snapshot in the local snapshot group.

The entries in the SYS.SLOG$ table at the old master site for the switched snapshot are not removed. As a result, the MLOG$ table of the switched updatable snapshot at the old master site has the potential to grow indefinitely, unless you purge it by calling DBMS_SNAPSHOT.PURGE_LOG.

Additional Information: The parameters for the SWITCH_SNAPSHOT_ MASTER procedure are described in Table 9-188 on page 9-172, and the exceptions are listed in Table 9-189 on page 9-172.

Monitoring an Advanced Replication System

Oracle uses its internal system of deferred transactions and job queues to propagate changes among the sites in an advanced replication system. It is important that you monitor regularly the internal workings of a replication environment to ensure that it is running smoothly. The following sections explain how you can use Oracle Replication Manager to view and manage administration requests, deferred transactions, error transactions, and job queues.

Managing Administration Requests

An administration request is a specific call to a procedure or function in Oracle's replication management API. For example, when you use Replication Manager to create a new master group, Replication Manager completes the task by making a call to the DBMS_REPCAT.CREATE_MASTER_REPGROUP procedure. All DDL changes to replication groups and the objects within generate administration requests. Many top-level administration requests generate additional replication management API calls to complete the request.

Administration requests are inserted by the master definition site in the administration request queues at all master sites as one distributed transaction. Each master site has a scheduled job, DO_DEFERRED_REPCAT_ ADMIN, that executes requests simultaneously at each site. As administration requests are processed, each site reports back to the master definition site. Oracle removes requests that complete successfully from the administration request queue at the master definition site. However, if any errors are encountered, the administration request remains in the master definition site's administration request queue with an error status.

Replication Manager allows you view and update the status of administration requests. The following sections explain more about how to manage administration requests for a master group in a multimaster advanced replication environment.

Displaying Administration Requests

To display the administration requests for a master group at a master site:

Open the site's Configuration folder.
Open the subordinate Master Groups folder.
Open the target master group.
Click the Admin Requests folder of the target master group.

The detail panel of Replication Manager lists information for all pending master group administration requests at the corresponding master site, including:

The corresponding replication management API call for the request.
The current status of the request (for example, ready, error, awaiting callback, and so on).
The source database for the administration request.
Any errors associated with the administration request.

Replication Manager does not automatically update the display of the detail panel. To obtain a more current list of pending administration requests, refresh the display.

Additional Information: You can also view administration requests by querying the REPCATLOG data dictionary view.

Applying Administration Requests

As long as each instance in an Oracle advanced replication facility has one or more SNP processes, each server 1fgruns a job at a regular interval to execute all administration requests. If you do not want to wait for Oracle to execute administration requests, use Replication Manager to apply all pending administration requests manually.

Display the administration requests for a master group at the target master site.
Right-click anywhere in the detail window.
Click Apply all admin requests now.

Note: Oracle automatically attempts to apply all administration requests synchronously among all master sites.

API Equivalent: DBMS_REPCAT.DO_DEFERRED_REPCAT_ADMIN

Deleting Administration Requests

Sometimes it is necessary to remove pending administration requests for a master group. For example, certain administration requests might return errors. Even after you resolve the corresponding error situation, administration requests remain in the server's queue unless you manually purge them.

To remove administration requests for a master group:

Display the administration requests for a master group at the target master site.
Click one or more target requests.
Click the Delete toolbar button.

API Equivalent: DBMS_REPCAT.PURGE_MASTER_LOG

More about Administration Request Mechanisms

When you use Replication Manager or make a call to a procedure in the DBMS_REPCAT pac1fgage to administer an advanced replication system, Oracle uses its internal mechanisms to broadcast the request using synchronous replication. If a synchronous broadcast fails for any reason, Oracle returns an error message and rolls back the encompassing transaction.

When an Oracle Server receives an administration request, it records the request in the REPCATLOG view and the corresponding DDL statement in a child table of the REPCATLOG view. When you view administration requests for a master group at a master site, you might observe requests that are awaiting a callback from another master site. Whenever you use Replication Manager to create an administration request for a replication group, Oracle automatically inserts a job into the local job queue, if one does not already exist for the group. This job periodically executes the procedure DO_DEFERRED_REPCAT_ADMIN. Whenever you synchronously broadcast a request, Oracle attempts to start this job immediately in order to apply the replicated changes at each master site.

Assuming that Oracle does not encounter any errors, DO_DEFERRED_REPCAT_ ADMIN will be run whenever a background process is available to execute the job. The initialization parameter JOB_QUEUE_INTERVAL determines how often the background process wakes up. You can experience a delay if you do not have enough background processes available to execute the outstanding jobs.

Note: When JOB_QUEUE_PROCESSES = 0 at a site, you must apply administration requests manually for all groups at the site. See "Applying Administration Requests" on page 6-5 for more information.

For each call of DO_DEFERRED_REPCAT_ADMIN at a master site, the site checks the REPCATLOG view to see if there are any requests that need to be performed. When one or more administration requests are present, Oracle applies the request and updates any local views as appropriate. This event can occur asynchronously at each master site.

DO_DEFERRED_REPCAT_ADMIN executes the local administration requests in the proper order. When DO_DEFERRED_REPCAT_ADMIN is executed at a master that is not the master definition site, it does as much as possible. Some asynchronous activities such as populating a replicated table require communication with the master definition site. If this communication is not possible, DO_DEFERRED_REPCAT_ADMIN stops executing administration requests to avoid executing requests out of order. Some communication with the master definition site, such as the final step of updating or deleting an administration request at the master definition site, can be deferred and will not prevent DO_DEFERRED_REPCAT_ADMIN from executing additional requests.

The success or failure of an administration request at each master site is noted in the REPCATLOG view at each site. For each master group, Replication Manager displays the corresponding status of each administration request. Ultimately, each master site propagates the status of its administration requests to the master definition site. If a request completes successfully at a master site, Oracle removes the callback for the site from the REPCATLOG view at the master definition site. If the event completes successfully at all sites, all entries in the REPCATLOG view at all sites, including the master definition site, will be removed.

By synchronously broadcasting the change, Oracle ensures that all sites are aware of the change, and thus are capable of remaining in synch. By allowing the change to be applied at the site at a future point in time, Oracle provides you with the flexibility to choose the most appropriate time to apply changes at a site.

If an object requires automatically generated replication support, you must regenerate replication support after altering the object. Oracle then activates the internal triggers and regenerates the packages to support replication of the altered object at all master sites.

Note: Although the DDL must be successfully applied at the master definition site in order for these procedures to complete without error, this does not guarantee that the DDL is successfully applied at each master site. Replication Manager displays the status of all administration requests. Additionally, the REPCATLOG view contains interim status and any asynchronous error messages generated by the request.

Any snapshot sites that are affected by a DDL change are updated the next time you perform a refresh of the snapshot site. While all master sites can communicate with one another, snapshot sites can communicate only with their associated master site.

If you must alter the shape of a snapshot as the result of a change to its master, you must drop and re-create the snapshot.

Diagnosing Problems with Administration Requests

After you administer an advanced replication environment, you should take a look at the administration requests to make sure that everything is running smoothly. While monitoring your system, you might find that there are problems related to administration requests. The following list provides you with some troubleshooting ideas for administration request problems.

If administration requests are backed up at a site and not because of an error condition, ensure that there is not a problem with the local job running DBMS_REPCAT.DO_DEFERRED_REPCAT_ADMIN. See "Diagnosing Problems with Jobs" on page 6-14 for more information about diagnosing job queue problems.
Note: Additionally, check the LOG_USER column in the DBA_JOBS view to ensure that the replication job is being run on behalf of the replication administrator. Check the USERID column of the DBA_REPCATLOG view to ensure that the replication administrator was the user that submitted the request. DBMS_REPCAT.DO_DEFERRED_REPCAT_ADMIN only performs those administrative requests submitted by the user that calls this procedure.
Ensure the relevant databases are running and communication is possible.
Ensure that the necessary private database links are available for the advanced replication facility, and that the user designated in the CONNECT TO clause (generally the replication administrator) has the necessary privileges. If you used the Replication Manager setup wizard to setup your sites, you should not have any problems.

Managing Deferred Transactions

An advanced replication system using asynchronous data propagation uses an internal system of deferred transactions and job queues to push changes from one site to another. Replication Manager lets you view and manage deferred and error transactions queued at each server in an advanced replication system.

Displaying Deferred Transactions

To display a summary list of a replication site's deferred transactions by their outgoing destination:

Open the Administration folder of the site.
Click on the Deferred Transactions by Dest folder.

The detail panel of Replication Manager lists summary information for all pending deferred transactions by destination.

To display individual deferred transactions for a particular destination:

Click on the destination in the Deferred Transactions by Dest folder.
Expand the destination in the tree panel.

To display the properties for an individual deferred transaction:

Click on the individual deferred transaction.
Click the Properties toolbar button.

To display the deferred calls for an individual deferred transaction:

Expand the individual deferred transaction.
Review the transaction's deferred calls and call destinations, and the transaction's destinations.

Note: Replication Manager does not automatically update the display of the detail panel. To obtain a more current list of pending deferred transactions, refresh the display.

Additional Information: You can also view deferred transactions by querying the DEFCALL, DEFCALLDEST, DEFLOB, DEFSCHEDULE, DEFTRAN, and DEFTRANDEST views.

Executing Deferred Transactions

Each instance in an Oracle advanced replication facility that has one or more SNP processes and the necessary scheduled links automatically runs a job at a regular interval to execute deferred transactions automatically at targeted destinations. If you do not want to wait for Oracle to execute a deferred transaction, use Replication Manager to manually push all pending deferred transactions for a particular destination.

Click the destination in the Deferred Transactions by Dest folder for a site.
Click the Properties toolbar button.
Click Reexecute all transactions now of the View Database Destination property sheet to force the execution of all corresponding deferred transactions.

API Equivalent: DBMS_DEFER_SYS.PUSH

Deleting Deferred Transactions

In some cases, you might know that a deferred transaction in the queue at your local site will cause an error transaction at the receiving site if pushed to the site. In such cases, it might be appropriate to delete the deferred transaction from the local queue to prevent an error transaction from happening.

Warning: See "Managing Error Transactions" on page 6-10 for more information about error transactions and when to delete deferred transactions.

To delete an individual deferred transaction:

Right-click on the individual deferred transaction.
Click Delete Deferred Transaction to delete the target transaction locally or click Delete to all destinations to delete the target transaction from all target replication sites.

API Equivalent: DBMS_DEFER_SYS.DELETE_TRAN

Managing Error Transactions

When Oracle pushes a deferred transaction from a snapshot or master site to another master site, Oracle ensures that the transaction is not removed from the local queue until it has been successfully propagated to the remote site. However, a transaction can be successfully propagated to a master site without being successfully applied at the site. An error in applying a deferred transaction may be the result of a database problem, such as a lack of available space in a table that you are attempting to update, or may be the result of an unresolvable replication conflict. If an error occurs, Oracle performs the following actions at the receiving master site:

Rolls back the transaction.
Logs the error transaction in the receiving site's replication catalog.

Displaying Error Transactions

You should frequently check each site in a replicated environment for error transactions and then resolve them. To display a summary list of a replication site's local error transactions:

Open the Administration folder of the site.
Click on the Local Errors folder.

The detail panel of Replication Manager lists summary information for all error transactions at the site.

To resolve an error transaction properly, you need specific information about what the transaction is attempting to perform. Deferred transactions consist of a series of deferred remote procedure calls that must be applied in a given order to maintain transaction consistency.

To display more information about an individual error transaction:

Click on the individual error transaction.
Click the Properties toolbar button.

To display the deferred calls for an individual error transaction:

Expand the individual error transaction.
Review the transaction's deferred calls and call destinations, and the transaction's destinations.

Resolving Error Transactions

Once you have determined the cause of an error transaction, you may need to perform one or more of the following actions at the destination site after fixing the error:

Re-execute the error transaction.
Delete the error transaction from the local site.

Executing Error Transactions

When you have resolved the problem that caused an error transaction, you can re-execute the error transaction. If the error transaction executes successfully, Oracle automatically removes the transaction from the local site's replication catalog.

To re-execute an error transaction:

Right-click on the individual error transaction.
Click Re-execute Transaction.

API Equivalent: DBMS_DEFER_SYS.EXECUTE_ERROR.

When Oracle re-executes an error transaction at the receiving site, Oracle executes the transaction in the security context of the original receiver. If the original receiver is no longer a valid user (that is, if the user was dropped), the deferred transaction can be re-executed under the security context of a different user using the DBMS_ DEFER_SYS.EXECUTE_ERROR_AS_USER procedure. See this procedure, which is described in Table 9-25, "Return Values for DISABLED".

Attention: If you re-execute a single error transaction, Oracle does not commit the transaction, even if it executes successfully. If you are satisfied with the results of the transaction, you should issue the SQL command COMMIT WORK. If EXECUTE_ERROR re-executes multiple transactions, each transaction is committed as it completes.

Deleting Error Transactions

Sometimes, you must manually resolve an error transaction (in other words, not re-execute the transaction to resolve it). When you have resolved the problem that caused an error transaction, you should delete the error transaction. To delete an error transaction:

Click on the individual error transaction.
Click the Delete toolbar button.

API Equivalent: DBMS_DEFER_SYS.DELETE_ERROR.

Managing Local Jobs

Oracle runs jobs in each site's job queue to complete certain tasks automatically that are necessary to manage an advanced replication environment. For example, when you use Replication Manager to create and enable a scheduled link to a remote site, the local server places a job in its job queue that Oracle periodically runs to push local changes to a remote master.

Replication Manager has several features that you can use to view and manage the job queues of each server in an advanced replication system. The following sections explain more about viewing and managing a server's local jobs.

Displaying a Site's Local Jobs

Oracle creates a job in a site's local job queue on behalf of the following operations:

When you create a scheduled link, Oracle creates a job to push deferred transactions to the target remote master site. The PL/SQL for this type of job will include the API call DBMS_DEFER_SYS.PUSH.
When you schedule purging of a site's deferred transaction queue, Oracle creates a job to perform this operation. The PL/SQL for this type of job will include the API call DBMS_DEFER_SYS.PURGE.
When you create a master group, Oracle creates a job to push corresponding administration requests to the other master sites that manage the group (one job per destination). The PL/SQL for this type of job will include the API call DBMS_REPCAT.DO_DEFERRED_ REPCAT_ADMIN.
When you create a refresh group, Oracle creates a job to perform regular refreshes for the group. The PL/SQL for this type of job will include the API call DBMS_REFRESH.REFRESH.

To display a summary list of a replication site's local job queue:

Open the Administration folder of the site.
Click on the Local Jobs folder.

The detail panel of Replication Manager lists summary information for all local jobs.

To display the properties for an individual local job:

Click on the individual job.
Click the Properties toolbar button.

The pages of the Edit Job property sheet let you view the various properties of the job, including:

The job's next execution date and execution interval.
The job's PL/SQL text.
The most recent execution date for the job.
The current status of the job (normal or broken).
The number of failed executions for the job.
The user environment under which the job executes.

Editing the Properties of a Local Job

In certain situations, you might want to edit the properties of a local job. For example, the default execution interval for a master group's administration requests is 10 minutes; the only way to edit this setting is to edit the scheduling properties for the corresponding job. To edit the properties of a local job:

Click the target job.
Click the Properties toolbar button.

The Edit Job property sheet lets you edit the following properties of a job:

The job's next execution date and execution interval.
The job's PL/SQL text.

Manually Running a Job

Rather than wait for the next execution date for a job, you can force a job to run. To run a job immediately:

Click the target job.
Click the Properties toolbar button.
Click Run Now.

Breaking and Enabling a Job

In certain cases, you might need to temporarily disable (break) a job and then later enable the job again. Or, you might need to enable a broken job after fixing a problem the prevented the job from running properly. For example, if you accidentally drop a database link upon which a job depends, the job will fail and eventually break (after 16 successive failures). After you recreate the necessary database link, you can then enable the broken job. To break or enable (make normal) a local job:

Click the target job.
Click the Properties toolbar button.
Click Make Broken/Make Normal.

Diagnosing Problems with Jobs

Many operations in an advanced replication environment rely on jobs to perform work. While monitoring your system, you might find that there are problems related to jobs. You should use Replication Manager to monitor local jobs regularly.

If a job fails to execute, first check to see the status of the job. If the job is broken, check the alert log and trace files for error information and fix the error. If the job is not broken (normal), Oracle should ultimately re-execute it.

If the job is OK but has never executed, there may be a problem with the availability of SNP background processes. Check the initialization parameter JOB_QUEUE_PROCESSES to determine the number of background processes available and JOB_QUEUE_INTERVAL to determine how frequently each background processes wakes up. You can also query the DBA_JOBS_RUNNING view to explore what jobs these processes are currently running (you may have a problem with a runaway job), and the alert log and trace file can provide you with additional information about potential problems with the background process.

Database Backup and Recovery in Replication Systems

Databases using advanced replication are distributed databases. Follow the guidelines for distributed database backups outlined in the Oracle8 Administrator's Guide when creating backups of advanced replication databases. Follow the guidelines for coordinated distributed recovery in the Oracle8 Administrator's Guide when recovering an advanced replication database.

If you fail to follow the coordinated distributed recovery guidelines, there is no guarantee that your advanced replication databases will be consistent. For example, a restored master site may have propagated different transactions to different masters. You may need to perform extra steps to correct for an incorrect recovery operation. One such method is to drop and recreate all replicated objects in the recovered database.

Recommendation: Remove pending deferred transactions and deferred error records from the restored database, and resolve any outstanding distributed transactions before dropping and recreating replicated objects. If the restored database was a master definition site for some replicated environments, you should designate a new master definition site before dropping and creating objects. Any snapshots mastered at the restored database should be fully refreshed, as well as any snapshots in the restored database.

To provide continued access to your data, you may need to change master definition sites (assuming the database being recovered was the master definition site), or remaster snapshot sites (assuming their master site is being recovered).

Performing Checks on Imported Data

After performing an export/import of a replicated object or an object used by the advanced replication facility (for example, the REPSITES view), you should run the REPCAT_IMPORT_CHECK procedure in the DBMS_REPCAT package.

In the following example, the procedure checks the objects in the ACCT replicated object group at a snapshot site to ensure that they have the appropriate object identifiers and status values:

DBMS_REPCAT.REPCAT_IMPORT_CHECK( gname     =>   'acct',
                                 master    =>   FALSE);

Additional Information: The parameters for the REPCAT_IMPORT_CHECK procedure are described in Table 9-178 on page 9-165, and the exceptions are listed in Table 9-179 on page 9-165.

Auditing Successful Conflict Resolution

Whenever Oracle detects and successfully resolves an update, delete, or uniqueness conflict, you can view information about what method was used to resolve the conflict by querying the REPRESOLUTION_STATISTICS view. This view is updated only if you have chosen to turn on conflict resolution statistics gathering for the table involved in the conflict.

Gathering Conflict Resolution Statistics

Use the REGISTER_STATISTICS procedure in the DBMS_REPCAT package to collect information about the successful resolution of update, delete, and uniqueness conflicts for a table. The following example gathers statistics for the EMP table in the ACCT_REC schema:

DBMS_REPCAT.REGISTER_STATISTICS(sname    =>   'acct_rec',
                                 oname    =>   'emp');

Additional Information: The parameters for the REGISTER_STATISTICS procedure are described in Table 9-172 on page 9-160, and the exceptions are listed in Table 9-173 on page 9-160.

Viewing Conflict Resolution Statistics

After you call REGISTER_STATISTICS for a table, each conflict that is successfully resolved for that table is logged in the REPRESOLUTION_ STATISTICS view. Information about unresolved conflicts is always logged to the DEFERROR view, whether the object is registered or not.

Additional Information: The REPRESOLUTION_STATISTICS view is described in "REPRESOLUTION_STATISTICS View" on page 10-16 and the DEFERROR view is described in "DEFERROR View" on page 10-22.

Canceling Conflict Resolution Statistics

Use the CANCEL_STATISTICS procedure in the DBMS_REPCAT package if you no longer want to collect information about the successful resolution of update, delete, and uniqueness conflicts for a table. The following example cancels statistics gathering on the EMP table in the ACCT_REC schema:

DBMS_REPCAT.CANCEL_STATISTICS(sname    => '  acct_rec',
                               oname    =>   'emp');

Additional Information: The parameters for the CANCEL_STATISTICS procedure are described in Table 9-97 on page 9-101.

Deleting Statistics Information

If you registered a table to log information about the successful resolution of update, delete, and uniqueness conflicts, you can remove this information from the REPRESOLUTION_STATISTICS view by calling the PURGE_STATISTICS procedure in the DBMS_REPCAT package.

The following example purges the statistics gathered about conflicts resolved due to inserts, updates, and deletes on the EMP table between January 1 and March 31:

DBMS_REPCAT.PURGE_STATISTICS(sname      =>  'acct_rec',
                             oname      =>  'emp',
                             start_date =>   '01-JAN-95',
                              end_date   =>   '31-MAR-95);

Additional Information: The parameters for the PURGE_STATISTICS procedure are described in Table 9-166 on page 9-155, and the exceptions are listed in Table 9-167 on page 9-155.

Determining Differences Between Replicated Tables

When administering a replicated environment, you may periodically want to check whether the contents of two replicated tables are identical. The following procedures in the DBMS_RECTIFIER_DIFF package let you identify, and optionally rectify, the differences between two tables when both sites are release 7.3 or higher:

DIFFERENCES

The DIFFERENCES procedure compares two replicas of a table, and determines all rows in the first replica that are not in the second and all rows in the second that are not in the first. The output of this procedure is stored in two user-created tables. The first table stores the values of the missing rows, and the second table is used to indicate which site contains each row.

RECTIFY

The RECTIFY procedure uses the information generated by the DIFFERENCES procedure to rectify the two tables. Any rows found in the first table and not in the second are inserted into the second table. Any rows found in the second table and not in the first are deleted from the second table.

To restore equivalency between all copies of a replicated table, you should complete the following steps:

Select one copy of the table to be the "reference" table. This copy will be used to update all other replicas of the table as needed.
Determine if it is necessary to check all rows and columns in the table for differences, or only a subset. For example, it may not be necessary to check rows that have not been updated since the last time that you checked for differences. Although it is not necessary to check all columns, your column list must include all columns that make up the primary key (or that you designated as a substitute identity key) for the table.
After determining which columns you will be checking in the table, you need to create two tables to hold the results of the comparison.
You must create one table that can hold the data for the columns being compared. For example, if you decide to compare the EMPNO, SAL, and BONUS columns of the EMPLOYEE table, your CREATE statement would need to be similar to the one shown below.
```
CREATE TABLE missing_rows_data
(
  empno    NUMBER,
  sal    NUMBER,
  bonus    NUMBER)
```
You must also create a table that indicates where the row is found. This table must contain three columns with the data types shown in the following example:
```
CREATE TABLE missing_rows_location
(
  present     VARCHAR2(128),
  absent      VARCHAR2(128),
  r_id        ROWID
)
```
Suspend replication activity for the object group containing the tables that you want to compare. Although suspending replication activity for the group is not a requirement, rectifying tables that were not quiesced first can result in inconsistencies in your data.

At the site containing the "reference" table, call the DBMS_RECTIFIER_DIFF.DIFFERENCES procedure. For example, if you wanted to compare the EMPLOYEE tables at the New York and San Francisco sites, your procedure call would look similar to the following:

DBMS_RECTIFIER_DIFF.DIFFERENCES(
     sname1              =>   'hr',
     oname1              =>   'employee',
     reference_site      =>   'ny.com',
     sname2              =>   'hr',
     oname2              =>   'employee',
     comparison_site     =>   'sf.com',
     where_clause        =>   '',
     column_list         =>   'empno,sal,bonus',
     missing_rows_sname  =>   'scott',
     missing_rows_oname1 =>   'missing_rows_data',
     missing_rows_oname2 =>   'missing_rows_location',
     missing_rows_site   =>   'ny.com',
     commit_rows          =>   50);

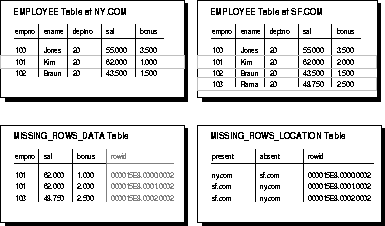

Figure 6-1 shows an example of two replicas of the EMPLOYEE table and what the resulting missing rows tables would look like if you executed the DIFFERENCES procedure on these replicas.

Figure 6-1 Determining Differences Between Replicas

Notice that the two missing rows tables are related by the ROWID and R_ID columns.

Now you can rectify the table at the "comparison" site to be equivalent to the table at the "reference" site by calling the DBMS_RECTIFIER_DIFF.RECTIFY procedure as shown in the following example:

DBMS_RECTIFIER_DIFF.RECTIFY(
     sname1              =>   'hr',
     oname1              =>   'employee',
     reference_site      =>   'ny.com',
     sname2              =>   'hr',
     oname2              =>   'employee',
     comparison_site     =>   'sf.com',
     column_list         =>   'empno,sal,bonus',
     missing_rows_sname  =>   'scott',
     missing_rows_oname1 =>   'missing_rows_data',
     missing_rows_oname2 =>   'missing_rows_location',
     missing_rows_site   =>   'ny.com',
     commit_rows          =>   50);

The RECTIFY procedure temporarily disables replication at the "comparison" site while it performs the necessary insertions and deletions, as you would not want to propagate these changes. RECTIFY first performs all of the necessary DELETEs and then performs all of the INSERTs. This ensures that there are no violations of a PRIMARY KEY constraint.

Attention: If you have any additional constraints on the "comparison" table you must ensure that they will not be violated when you call RECTIFY. You may need to update the table directly using the information from the missing rows table. If so, be certain to DELETE the appropriate rows from the missing rows tables.

After you have successfully executed the RECTIFY procedure, your missing rows tables should be empty. You can now repeat steps 5 and 6 for the remaining copies of the replicated table. Remember to use the same "reference" table each time to ensure that all copies are identical when you complete this procedure.
You may now resume replication activity for the master group.

Troubleshooting Common Problems

The following sections contain troubleshooting guidelines for managing an advanced replication environment.

Diagnosing Problems with Database Links

If you think a database link is not functioning properly, you can drop and recreate it using Oracle Enterprise Manager, Oracle Server Manager, or another tool.

Make sure that the scheduled interval is what you want.
Make sure that the scheduled interval is not shorter than the required execution time.

If you used a connection qualifier in a database link to a given site, the other sites that link to that site must have the exact same connection qualifier. For example, if you create a database link as follows:

CREATE DATABASE LINK myethernet CONNECT TO repsys IDENTIFIED BY secret
USING 'connect_string_myethernet'

All the sites, whether masters or snapshots, associated with the myethernet database link must include the `connect_string_myethernet' connect string.

Diagnosing Problems with Master Sites

There are a number problems that might arise in a multimaster advanced replication system. The next few sections discuss some problems and ways to troubleshoot them.

Replicated Objects Not Created at New Master Site

If you add a new master site to a master group, and the appropriate objects are not created at the new site, try the following:

Ensure that the necessary private database links exist between the new master site and the existing master sites. If you used the Replication Manager setup wizard to setup your sites, you should not have any problems. You must have links both to the new site from each existing site, and from the new site to each existing site.
Make sure that the administration requests at all sites have completed successfully. If requests have not been executed yet, you can manually execute pending administration requests to complete the operation immediately.

DDL Changes Not Propagated to Master Site

If you create a new master group object or alter the definition of a master group object at the master definition site and the modification is not propagated to a master site, first ensure that the administration requests at all sites have completed successfully. If requests are pending execution, you can manually execute them to complete the operation immediately.

When you execute DDL statements through the replication API, Oracle executes the statements on behalf of the user who submits the DDL. When a DDL statement applies to an object in a schema other than the submitter's schema, the submitter needs appropriate privileges to execute the statement. In addition, the statement must explicitly name the schema. For example, assume that you, the replication administrator, supply the following as the DDL_TEXT parameter to the DBMS_REPCAT.CREATE_MASTER_ REPOBJECT procedure:

CREATE TABLE scott.new_emp AS SELECT * FROM hr.emp WHERE ...;

Because each table name contains a schema name, this statement works whether the replication administrator is SCOTT, HR, or another user-as long as the administrator has the required privileges.

Suggestion: Qualify the name of every schema object with the appropriate schema.

DML Changes Not Asynchronously Propagated to Other Sites

If you make an update to your data at a master site, and that change is not properly asynchronously propagated to the other sites in your replicated environment, try the following:

Use Replication Manager to check whether the corresponding deferred transaction has been pushed to the destination. If not, you can also check to see how much longer it will be before the scheduled link pushes the queue to the destination site. If you do not want to wait for the next scheduled push across a link, you can execute deferred transaction manually. See "Executing Deferred Transactions" on page 6-9.
If a scheduled link's interval has passed and corresponding deferred transactions have not been pushed, check the corresponding job for the link. See "Displaying a Site's Local Jobs" on page 6-12.
Even after propagating a deferred transaction to a destination, it might not execute because of an error. To learn more about error transactions, see "Managing Error Transactions" on page 6-10.

DML Cannot be Applied to Replicated Table

If you receive the DEFERRED_RPC_QUIESCE exception when you attempt to modify a replicated table, one or more master groups at your local site are "quiescing" or "quiesced". To proceed, your replication administrator must resume replication activity for the group.

Bulk Updates and Constraint Violations

A single update statement applied to a replicated table can update zero or more rows. The update statement causes zero or more update requests to be queued for deferred execution, one for each row updated. This distinction is important when constraints are involved, because Oracle effectively performs constraint checking at the end of each statement. While a bulk update might not violate a uniqueness constraint, for example, some equivalent sequence of individual updates might violate uniqueness.

If the ordering of updates is important, update one row at a time in an appropriate order. This lets you define the order of update requests in the deferred RPC queue.

Re-Creating a Replicated Object

If you add an object such as a package, procedure, or view to a master group, the status of the object must be VALID. If the status of an object is INVALID, recompile the object, or drop and recreate the object before adding it to a master group.

Unable to Generate Replication Support for a Table

When you generate replication support for a table, Oracle activates an internal trigger at the local site. If the table will be propagating changes asynchronously, this trigger uses the DBMS_DEFER package to build the calls that are placed in the local deferred transaction queue. EXECUTE privileges for most of the packages involved with advanced replication, such as DBMS_REPCAT and DBMS_DEFER, need to be granted to replication administrators and users that own replicated objects. The Replication Manager setup wizard and the DBMS_REPCAT_ADMIN package performs the grants needed by the replication administrators for many typical replication scenarios. When the owner of a replicated object is not a replication administrator, however, you must explicitly grant EXECUTE privilege on DBMS_DEFER to the object owner.

Problems with Replicated Procedures or Triggers

If you discover an unexpected unresolved conflict, and you were mixing procedural and row-level replication on a table, carefully review the procedure to ensure that the replicated procedure did not cause the conflict. Ensure that ordering conflicts between procedural and row-level updates are not possible. Check if the replicated procedure locks the table in EXCLUSIVE mode before performing updates (or uses some other mechanism of avoiding conflicts with row-level updates). Check that row-level replication is disabled at the start of the replicated procedure and re-enabled at the end. Ensure that row-level replication is re-enabled even if exceptions occur when the procedure executes. In addition, check to be sure that the replicated procedure executed at all master sites. You should perform similar checks on any replicated triggers that you have defined on replicated tables.

Diagnosing Problems with the Deferred Transaction Queue

If deferred transactions at a site are not being pushed to their destinations, there can be several reasons for the problem. The following sections explain some possible causes.

Check Jobs for Scheduled Links

When you create a scheduled link, Oracle adds a corresponding job to the site's job queue. If you have scheduled a link to push deferred transactions at a periodic interval, and you encounter a problem, you should first be certain that you are not experiencing a problem with the job queue.

Distributed Transaction Problems

When Oracle pushes a deferred transaction to a remote site using serial propagation, it uses a distributed transaction to ensure that the transaction has been properly committed at the remote site before the transaction is removed from the queue at the local site. For information on diagnosing problems with distributed transactions (two-phase commit), see the book Oracle8 Distributed Database Systems.

Incomplete Database Link Specifications

If you notice that transactions are not being pushed to a given remote site, you may have a problem with how you have specified the destination for the transaction. When you create a scheduled link, you must provide the full database link name. If you use Replication Manager, you should not have any problems.

Incorrect Replication Catalog Views

Having the wrong view definitions can lead to erroneous deferred transaction behavior. The DEFCALLDEST and DEFTRANDEST views are defined differently in CATDEFER.SQL and CATREPC.SQL. The definitions in CATREPC.SQL should be used whenever advanced replication is used. If CATDEFER.SQL is ever (re)loaded, ensure that the view definitions in CATREPC.SQL are subsequently loaded.

Diagnosing Problems with Snapshots

There are a number problems that might happen with snapshot sites in an advanced replication system. The next few sections discuss some problems and ways to troubleshoot them.

Problems Creating Replicated Objects at Snapshot Site

If you unsuccessfully attempt to create a new object at a snapshot site, try the following:

For an updatable snapshot, check that the associated master table has a snapshot log.
Make sure that you have the necessary privileges to create the object. See "Preparing for Snapshot Site Replication" on page 4-5.
If you are trying to add an existing snapshot to a snapshot group, try recreating the snapshot when you add it to the group.

Problems with Snapshot Refresh

If you have a problem refreshing a snapshot, try the following:

Check the NEXT value in the DBA_SNAPSHOTS view to determine if the refresh has been scheduled.
If the refresh interval has passed, check the DBA_REFRESH view for the associated job number for the snapshot refresh and then follow the instructions for diagnosing a problem with job queues in "Managing Local Jobs" on page 6-12.
You may also encounter an error if you attempt to define a master detail relationship between two snapshots. You should define master detail relationships only on the master tables by using declarative referential integrity constraints; the related snapshots should then be placed in the same refresh group to preserve this relationship.
If you encounter a situation where your snapshots are being continually refreshed, you should check the refresh interval that you specified. This interval is evaluated before the snapshot is refreshed. If the interval that you specify is less than the amount of time it takes to refresh the snapshot, the snapshot will be refreshed each time the SNP background process checks the queue of outstanding jobs.
If there are any outstanding conflicts recorded at the master site for the snapshots, you can only refresh the snapshots by setting the parameter REFRESH_AFTER_ERRORS to TRUE. This parameter can be set when you create or alter a snapshot refresh group. (There is a corresponding parameter for Replication Manager property sheets.)
If your snapshot logs are growing too large, see "Managing Snapshot Logs" on page 2-28.
Snapshots in the same refresh groups will have their rows updated in a single transaction. Such a transaction can be very large, requiring either a large rollback segment at the snapshot site (with the rollback segment specified to be used during refresh) or you will need to use more frequent refreshes to reduce the transaction size.
If Oracle error ORA-12004 occurs, the master site may have run out of rollback segments when trying to maintain the snapshot log, or the snapshot log may be out of date. For example, the snapshot log may have been purged or recreated. See "Managing Snapshot Logs" on page 2-28.
Complete refreshes of a single table internally use the TRUNCATE feature to increase speed and reduce rollback segment requirements. However, until the snapshot refresh is complete, users may temporarily see no data in the snapshot. Refreshes of multiple snapshots (for example, refresh groups) do not use the TRUNCATE feature.
Reorganization of the master table (for example, to reclaim system resources) should TRUNCATE the master table to force ROWID snapshots to do complete refreshes, otherwise, the snapshots will have incorrect references to master table ROWIDs. For more information, see "Master Table Reorganization and ROWID Snapshots" on page 2-43.

Additional Information: See "Troubleshooting Refresh Problems" on page 2-39.

Updating The Comments Fields in Views

There are several procedures in the DBMS_REPCAT package that allow you to update the comment information in the various views associated with replication. Table 6-1 lists the appropriate procedure to call for each view.

Table 6-1 Updating Comments in Advanced Replication Facility Views

View	DBMS_REPCAT Procedure	Additional Information
REPGROUP	COMMENT_ON_REPGROUP( gname IN VARCHAR2, Comment IN VARCHAR2)	The parameters for the COMMENT_ON_REPGROUP procedure are described in Table 9-103, and the exceptions are listed in Table 9-104.
REPOBJECT	COMMENT_ON_REPOBJECT( sname IN VARCHAR2, oname IN VARCHAR2, type IN VARCHAR2, comment IN VARCHAR2)	The parameters for the COMMENT_ON_REPOBJECT procedure are described in Table 9-107, and the exceptions are listed in Table 9-108.
REPSITES	COMMENT_ON_REPSITES( gname IN VARCHAR2, master IN VARCHAR, comment IN VARCHAR2)	The parameters for the COMMENT_ON_REPSITES procedure are described in Table 9-105, and the exceptions are listed in Table 9-106.
REPCOLUMN_ GROUP	COMMENT_ON_COLUMN_GROUP( sname IN VARCHAR2, oname IN VARCHAR2, column_group IN VARCHAR2, comment IN VARCHAR2)	The parameters for the COMMENT_ON_COLUMN_GROUP procedure are described in Table 9-99, and the exceptions are listed in Table 9-100.
REPPRIORITY_ GROUP	COMMENT_ON_PRIORITY_GROUP( gname IN VARCHAR2, pgroup IN VARCHAR2) comment IN VARCHAR2)	The parameters for the COMMENT_ON_PRIORITY_GROUP procedure are described in Table 9-101, and the exceptions are listed in Table 9-102.
REPPRIORITY_ GROUP (site priority group)	COMMENT_ON_SITE_PRIORITY( gname IN VARCHAR2, name IN VARCHAR2, comment IN VARCHAR2)	The parameters for the COMMENT_ON_SITE_PRIORITY procedure are described in Table 9-101, and the exceptions are listed in Table 9-102.
REPRESOLUTION (uniqueness conflicts)	COMMENT_ON_UNIQUE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, constraint_name IN VARCHAR2, sequence_no IN NUMBER, Comment IN VARCHAR2)	The parameters for the COMMENT_ON_UNIQUE_RESOLUTIONprocedures are described in Table 9-109, and the exceptions are listed in Table 9-110.
REPRESOLUTION (update conflicts)	COMMENT_ON_UPDATE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, column_group IN VARCHAR2, sequence_no IN NUMBER, Comment IN VARCHAR2)	The parameters for the COMMENT_ON_UNIQUE_RESOLUTION procedures are described in Table 9-109, and the exceptions are listed in Table 9-110.
REPRESOLUTION (delete conflicts)	COMMENT_ON_DELETE_RESOLUTION( sname IN VARCHAR2, oname IN VARCHAR2, sequence_no IN NUMBER, comment IN VARCHAR2)	The parameters for the COMMENT_ON_UNIQUE_RESOLUTION procedures are described in Table 9-109, and the exceptions are listed in Table 9-110.

6Administering a Replicated Environment
