10
Data Dictionary Views
This chapter describes data dictionary views that can be useful to users of the advanced replication facility. The views are alphabetized within the following categories:
Replication Catalog Views
Whenever you install advanced replication capabilities at a site, Oracle installs the replication catalog, which consists of tables and views, at that site. As shown in Table 10-1, the views are used by master and snapshot sites to determine such information as what objects are being replicated, where they are being replicated, and if any errors have occurred during replication. You should not modify the replication catalog tables directly; use the procedures provided in the DBMS_REPCAT package.
Each view has three versions, which have different prefixes: USER_*, ALL_*, and SYS.DBA_* unless otherwise stated. This section ignores any differences among these views.
This section contains information about the following views:
REPGROUP View
The REPGROUP view lists all of the object groups that are being replicated. The members of each object group are listed in a different view, REPOBJECT.
Table 10-1 REPGROUP View
|
Column
|
Description
|
|---|
|
sname
|
The name of the replicated schema. Obsolete with release 7.3 or later.
|
|
gname
|
The name of the replicated object group.
|
|
master
|
'Y' indicates that this is a master site. 'N' indicates the current site is a snapshot site.
|
|
status
|
Used at master sites only. Status can be: normal, quiescing, or quiesced.
|
|
schema_Comment
|
Any user-supplied Comments.
|

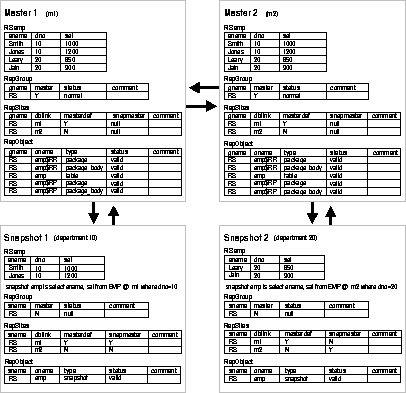

Figure 10-1 Replication Catalog Views
REPCATLOG View
The REPCATLOG at each master site contains the interim status of any asynchronous administrative requests and any error messages generated. All messages encountered while executing a request are eventually transferred to the REPCATLOG at the master that originated the request. If an administrative request completes without error, ultimately all traces of this request are removed from the REPCATLOG view.
Table 10-2 REPCATLOG View
|
Column
|
Description
|
|---|
|
id
|
A sequence number. Together, the ID and SOURCE columns identify all log records at all master sites that pertain to a single administrative request.
|
|
source
|
Location that the request originated.
|
|
userid
|
Userid of person making the request.
|
|
timestamp
|
When the request was made.7
|
|
role
|
Indicates if site is the 'masterdef' or a 'master' site.
|
|
master
|
If the role is 'masterdef' and the task is remote, indicates which master is performing the task.
|
|
sname
|
The name of the schema for the replicated object, if applicable.
|
|
request
|
The name of the DBMS_REPCAT administrative procedure that was run.
|
|
oname
|
The name of the replicated object, if applicable.
|
|
type
|
The type of replicated object.
|
|
status
|
The status of the administrative request: ready, do_callback, await_callback, or error.
|
|
message
|
Any error message that has been returned.
|
|
errnum
|
The Oracle error number for the message.
|
|
gname
|
The name of the replicated object group.
|
REPCOLUMN View
The REPCOLUMN view lists the replicated columns for a table.
Table 10-3 REPCOLUMN View
|
Column
|
Description
|
|---|
|
sname
|
The name of the object owner.
|
|
oname
|
The name of the object.
|
|
type
|
The type of the object.
|
|
cname
|
The name of the replicated column.
|
|
id
|
The id of the replicated column.
|
|
pos
|
The ordering of the replicated column.
|
|
compare_old_on_delete
|
Indicates whether Oracle sends and compares the old value of the column in replicated deletes.
|
|
compare_old_on_update
|
Indicates whether Oracle sends and compares the old value of the column in replicated updates.
|
REPCOLUMN_GROUP View
The REPCOLUMN_GROUP view lists all of the column groups that you have defined for each replicated table.
Table 10-4 REPCOLUMN_GROUP View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated table.
|
|
oname
|
The name of the replicated table.
|
|
group_name
|
The column group name.
|
|
group_Comment
|
Any user-supplied Comments.
|
Note: The sname column is not present in the USER_ view.
REPCONFLICT View
The REPCONFLICT view displays the name of the table for which you have defined a conflict resolution method and the type of conflict that the method is used to resolve.
Table 10-5 REPCONFLICT View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated table.
|
|
oname
|
The name of the table for which you have defined a conflict resolution method.
|
|
conflict_type
|
The type of conflict that the conflict resolution method is used to resolve: delete, uniqueness, or update.
|
|
reference_name
|
The object to which the routine applies. For delete conflicts, this is the table name. For uniqueness conflicts, this is the constraint name. For update conflicts, this is the column group name.
|
Note: The sname column is not present in the USER_ view.
REPDDL View
The REPDDL holds DDL for replication objects.
Table 10-6 REPDDL View
|
Column
|
Description
|
|---|
|
log_id
|
Identifying number of the REPCAT log record.
|
|
source
|
Name of the database at which the request originated.
|
|
role
|
'Y' if this database is the masterdef for the request;
'N' if this database is a master.
|
|
master
|
Name of the database that processes this request.
|
|
line
|
Ordering of records within a single request.
|
|
text
|
Portion of an argument or DDL text.
|
REPGENERATED View
The REPGENERATED view lists information about system-generated objects.
Table 10-7 REPGENERATED View
|
Column
|
Description
|
|---|
|
sname
|
Owner of the object.
|
|
oname
|
Object name.
|
|
type
|
Object type.
|
|
base_sname
|
Owner of the base object.
|
|
base_oname
|
Object name of the base object.
|
|
base_type
|
Object type of the base object.
|
|
package_prefix
|
Prefix for package wrapper name.
|
|
procedure_prefix
|
prefix for procedure wrapper for procedures within a package wrapper.
|
|
distributed
|
'Y' if generation is distributed;
'N' if generated objects are cloned.
Should always be 'Y' for Rep3 environments.
|
|
reason
|
The reason why this object was generated.
|
Note: The REPGENERATED view is obsolete and is kept only for backward compatibility.
REPGROUPED_COLUMN View
The REPGROUPED_COLUMN view lists all of the columns that make up the column groups for each table.
Table 10-8 REPGROUPED_COLUMN View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated table.
|
|
oname
|
The name of the replicated table.
|
|
group_name
|
The name of the column group.
|
|
column_name
|
The name of the column in the column group.
|
Note: The sname column is not present in the USER_ version of the view.
REPKEY_COLUMNS View
The REPKEY_COLUMNS view lists information relating to the primary key column.
Table 10-9 REPKEY_COLUMNS View
|
Column
|
Description
|
|---|
|
sname
|
Owner of the replicated table.
|
|
oname
|
Name of the replicated table.
|
|
col
|
"Primary Key" column name in the table.
|
REPOBJECT View
The REPOBJECT view provides information about the objects in each replicated object group. An object can belong to only one object group. A replicated object group can span multiple schemas.
Table 10-10 REPOBJECT View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated object.
|
|
oname
|
The name of the replicated object.
|
|
type
|
The type of replicated object: table, view, package, package body, procedure, function, index, synonym, trigger, or snapshot.
|
|
status
|
CREATE indicates that Oracle is applying user supplied or Oracle-generated DDL to the local database in an attempt to create the object locally. When a local replica exists, Oracle COMPAREs the replica with the master definition to ensure that they are consistent. When creation or comparison complete successfully, Oracle updates the status to VALID; otherwise, it updates the status to ERROR. If you drop an object, Oracle updates its status to DROPPED before deleting the row from the REPOBJECT view.
|
|
id
|
The identifier of the local database object, if one exists.
|
|
object_Comment
|
Any user supplied Comments.
|
|
gname
|
The name of the replicated object group to which the object belongs.
|
|
generation_status
|
Status of whether the object needs to generate replication packages.
|
|
min_communication
|
N = send both OLD and NEW values for an updated view.
|
|
trigflag
|
Inline trigger flag. Y= trigger activated; N = trigger disabled.
|
REPPARAMETER_COLUMN View
In addition to the information contained in the REPRESOLUTION view, the REPPARAMETER_COLUMN view also contains information about the columns that you indicated should be used to resolve the conflict. These are the column values that are passed as the LIST_OF_COLUMN_NAMES argument to the ADD_*_RESOLUTION procedures in the DBMS_REPCAT package.
Table 10-11 REPPARAMETER_COLUMN View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated table.
|
|
oname
|
The name of the replicated table.
|
|
conflict_type
|
The type of conflict that the routine is used to resolve: delete, uniqueness, or update.
|
|
reference_name
|
The object to which the routine applies. For delete conflicts, this is the table name. For uniqueness conflicts, this is the constraint name. For update conflicts, this is the column group name.
|
|
sequence_no
|
The order that resolution methods are applied, with 1 being applied first.
|
|
method_name
|
The name of an Oracle-supplied conflict resolution method. For user-supplied methods, this value is 'user function'.
|
|
function_name
|
For methods of type 'user function', the name of the user-supplied conflict resolution routine.
|
|
priority_group
|
For methods of type 'priority group', the name of the priority group.
|
|
parameter_table_
name
|
Defaults to object name of PL/SQL table containing columns passed to conflict resolution function.
|
|
parameter_
column_name
|
The name of the column used as the IN parameter for the conflict resolution routine.
|
|
parameter_
sequence_no
|
Ordering of column used as IN parameter.
|
Note: The SNAME column is not present in the USER_ view.
REPPRIORITY View
The REPPRIORITY view displays the value and priority level of each priority group member. Priority group names must be unique within a replicated object group. Priority levels and values must each be unique within a given priority group.
Table 10-12 REPPRIORITY View
|
Column
|
Description
|
|---|
|
sname
|
The name of the replicated schema. Obsolete with release 7.3 or later.
|
|
gname
|
The name of the replicated object group.
|
|
priority_group
|
The name of the priority group or site priority group.
|
|
priority
|
The priority level of the member. The highest number has the highest priority.
|
|
data_type
|
The datatype of the values in the priority group.
|
|
fixed_data_length
|
The maximum length of values of datatype CHAR.
|
|
char_value
|
The value of the priority group member, if data_type = char.
|
|
varchar2_value
|
The value of the priority group member, if data_type = varchar2.
|
|
number_value
|
The value of the priority group member, if data_type = number.
|
|
date_value
|
The value of the priority group member, if data_type = date.
|
|
raw_value
|
The value of the priority group member, if data_type = raw.
|
|
nchar_value
|
The value of the priority group member, if data_type = nchar.
|
|
nvarchar2_value
|
The value of the priority group member, if data_type = nvarchar2.
|
|
large_char_value
|
The value of the priority group member, for blank-padded character strings over 255 characters.
|
Note: The SNAME and GNAME columns are not present in the USER_ view.
REPPRIORITY_GROUP View
The REPPRIORITY_GROUP view lists the priority and site priority groups that you have defined for a replicated object group.
Table 10-13 REPPRIORITY_GROUP View
|
Column
|
Description
|
|---|
|
sname
|
The name of the replicated schema. Obsolete with release 7.3 or later. Not shown in USER views.
|
|
gname
|
The name of the replicated object group. Not shown in USER views.
|
|
priority_group
|
The name of the priority group or site priority group.
|
|
data_type
|
The datatype of the values in the priority group.
|
|
fixed_data_length
|
The maximum length for values of datatype CHAR.
|
|
priority_Comment
|
Any user-supplied Comments.
|
REPPROP View
The REPPROP view indicates the technique used to propagate operations on an object to the same object at another master site. These operations may have resulted from a call to a stored procedure or procedure wrapper, or may have been issued against a table directly.
Table 10-14 REPPROP View
|
Column
|
Description
|
|---|
|
sname
|
The name of the schema containing the replicated object.
|
|
oname
|
The name of the replicated object.
|
|
type
|
The type of object being replicated.
|
|
dblink
|
The fully qualified database name of the master site to which changes are being propagated.
|
|
how
|
How propagation is performed. Values recognized are 'none' for the local master site, and 'synchronous' or 'asynchronous' for all others.
|
|
propagate_
Comment
|
Any user-supplied Comments.
|
REPRESOLUTION View
The REPRESOLUTION view indicates the routines used to resolve update, unique or delete conflicts for each table replicated using row-level replication for a given schema.
Table 10-15 REPRESOLUTION View
|
Column
|
Description
|
|---|
|
sname
|
The name of the replicated schema.
|
|
oname
|
The name of the replicated table.
|
|
conflict_type
|
The type of conflict that the routine is used to resolve: delete, uniqueness, or update.
|
|
reference_name
|
The object to which the routine applies. For delete conflicts, this is the table name. For uniqueness conflicts, this is the constraint name. For update conflicts, this is the column group name.
|
|
sequence_no
|
The order that resolution methods are applied, with 1 being applied first.
|
|
method_name
|
The name of an Oracle-supplied conflict resolution method. For user-supplied methods, this value is 'user function'.
|
|
function_name
|
For methods of type 'user function', the name of the user-supplied conflict resolution routine.
|
|
priority_group
|
For methods of type 'priority group', the name of the priority group.
|
|
resolution_
Comment
|
Any user-supplied Comments.
|
Note: The SNAME column is not present in the USER_ view.
REPRESOL_STATS_CONTROL View
The REPRESOL_STATS_CONTROL view lists information about statistics collection for conflict resolutions for all replicated tables in the database.
Table 10-16 REPRESOL_STATS_CONTROL View
|
Column
|
Description
|
|---|
|
sname
|
Owner of the table.
|
|
oname
|
Table name.
|
|
created
|
Timestamp for which statistics collection was first started.
|
|
status
|
Status of statistics collection: ACTIVE, CANCELLED.
|
|
status_update_date
|
Timestamp for which the status was last updated.
|
|
purged_date
|
Timestamp for the last purge of statistics data.
|
|
last_purged_start_date
|
The last start date of the statistics purging date range.
|
|
last_purged_end_date
|
The last end date of the statistics purging date range.
|
Note: The SNAME column is not present in the USER_ view.
REPRESOLUTION_METHOD View
The REPRESOLUTION_METHOD view lists all of the conflict resolution routines available in your current database. Initially, this view lists the standard routines provided with the advanced replication facility. As you create new user functions and add them as conflict resolution methods for an object in the database, these functions are added to this view.
Table 10-17 REPRESOLUTION_METHOD View
|
Column
|
Description
|
|---|
|
conflict_type
|
The type of conflict that the resolution routine is designed to resolve: update, uniqueness, or delete.
|
|
method_name
|
The name of the Oracle-supplied method, or the name of the user-supplied routine.
|
REPRESOLUTION_STATISTICS View
The REPRESOLUTION_STATISTICS view lists information about successfully resolved update, uniqueness, and delete conflicts for all replicated tables. These statistics are only gathered for a table if you have called DBMS_REPCAT.REGISTER_STATISTICS.
Table 10-18 REPRESOLUTION_STATISTICS View
|
Column
|
Description
|
|---|
|
sname
|
The name of the replicated schema.
|
|
oname
|
The name of the replicated table.
|
|
conflict_type
|
The type of conflict that was successfully resolved: delete, uniqueness, or update.
|
|
reference_name
|
The object to which the conflict resolution routine applies. For delete conflicts, this is the table name. For uniqueness conflicts, this is the constraint name. For update conflicts, this is the column group name.
|
|
method_name
|
The name of an Oracle-supplied conflict resolution method. For user-supplied methods, this value is 'user function'.
|
|
function_name
|
For methods of type 'user function', the name of the user supplied conflict resolution routine.
|
|
priority_group
|
For methods of type 'priority group', the name of the priority group.
|
|
primary_key_value
|
A concatenated representation of the row's primary key.
|
|
resolved_date
|
Date on which the conflict for this row was resolved.
|
Note: The SNAME column is not present in the USER_ view.
REPSITES View
The REPSITES view lists the members of each replicated object group.
Table 10-19 Columns in USER, ALL, and DBA REPSITES View
|
Column
|
Description
|
|---|
|
gname
|
The name of the replicated object group.
|
|
dblink
|
The database link to the master site for this object group.
|
|
masterdef
|
Indicates which of the dblinks is the master definition site.
|
|
snapmaster
|
Used by snapshot sites to indicate which of the dblinks to use when refreshing.
|
|
master_Comment
|
User-supplied Comments.
|
|
master
|
Is the site a master site for the replicated group? Y or N.
|
The DBA_REPSITES view has the following additional columns:
|
prop_updates
|
Number of requested updates for master.
|
|
my_dblink
|
Used to detect problem after import. If Y, the dblink is the global name.
|
REPGENOBJECTS View
The REPGENOBJECTS view describes objects generated to support replication.
Table 10-20 REPGENOBJECTS View
|
Column
|
Description
|
|---|
|
Base_oname
|
The object for which this object was generated.
|
|
Base_sname
|
The base object's owner.
|
|
Base type
|
The type of the base object.
|
|
Distributed
|
Obsolete.
|
|
Oname
|
The name of the generated object.
|
|
Package-prefix
|
The prefix for the package wrapper.
|
|
Procedure-prefix
|
Not used.
|
|
Reason
|
The reason the object was generated.
|
|
Sname
|
The name of the replicated schema.
|
|
Type
|
The type of the generated object.
|
Deferred Transaction Views
Oracle provides several views for you to use in administering deferred transactions. These views provide information about each deferred transaction, such as the transaction destinations, the deferred calls that make up the transactions, and any errors encountered during attempted execution of the transaction. You should not modify the tables directly; use the procedures provided in the DBMS_DEFER and DBMS_DEFER_SYS packages.
DEFCALL View
The DEFCALL view records all deferred remote procedure calls.
Table 10-21 DEFCALL View
|
Column
|
Description
|
|---|
|
callno
|
Unique ID of call within a transaction.
|
|
deferred_tran_id
|
The unique ID of the associated transaction.
|
|
schemaname
|
The schema name of the deferred call.
|
|
packagename
|
The package name of the deferred call.
|
|
procname
|
The procedure name of the deferred call.
|
|
argcount
|
The number of arguments to the deferred call.
|
DEFCALLDEST View
The DEFCALLDEST view lists the destinations for each deferred remote procedure call.
Table 10-22 DEFCALLDEST View
|
Column
|
Description
|
|---|
|
callno
|
Unique ID of call within a transaction.
|
|
deferred_tran_id
|
Corresponds to the deferred_tran_id in the DEFTRAN view. Each deferred transaction is made up of one or more deferred calls.
|
|
dblink
|
The fully qualified database name of the destination database.
|
DEFDEFAULTDEST View
If you are not using Oracle's replication facility and do not supply a destination for a deferred transaction or the calls within that transaction, Oracle uses the DEFDEFAULTDEST view to determine the destination databases to which you want to defer a remote procedure call.
Table 10-23 DEFDEFAULTDEST View
|
Column
|
Description
|
|---|
|
dblink
|
The fully qualified database name to which to replicate a transaction.
|
DEFERRCOUNT View
The DEFERRCOUNT view provides information about the error transactions for a given destination.
Table 10-24 DEFERRCOUNT View
|
Column
|
Description
|
|---|
|
errcount
|
Number of existing transactions that caused an error for the destination.
|
|
destination
|
Database link used to address destination.
|
DEFERROR View
The DEFERROR view provides the ID of each transaction that could not be applied. You can use this ID to locate the queued calls associated with this transaction. These calls are stored in the DEFCALL view. You can use the procedures in the DBMS_DEFER_QUERY package to determine the arguments to the procedures listed in the DEFCALL view.
Table 10-25 DEFERROR View
|
Column
|
Description
|
|---|
|
deferred_tran_id
|
The ID of the transaction causing the error.
|
|
callno
|
Unique ID of call at deferred_tran_db.
|
|
destination
|
Database link used to address destination.
|
|
error_number
|
Oracle error number.
|
|
error_msg
|
Error message text.
|
|
receiver
|
Original receiver of the deferred transaction.
|
|
origin_tran_db
|
The database originating the deferred transaction.
|
|
origin_tran_id
|
The original ID of the transaction.
|
|
start_time
|
Time the original transaction was enqueued.
|
DEFLOB View
The DEFLOB view stores the LOB parameters to deferred RPCs.
Table 10-26 DEFLOB View
|
Column
|
Description
|
|---|
|
id
|
Identifier of the LOB parameter.
|
|
deferred_tran_id
|
Trnsaction ID for deferred RPC with this LOB parameter.
|
|
blob_col
|
The binary LOB parameter.
|
|
clob_col
|
The character LOB parameter.
|
|
nclob_col
|
The national character LOB parameter.
|
DEFPROPAGATOR View
The DEFPROPAGATOR view displays information about the local propagator.
Table 10-27 DEFPROPAGATOR View
|
Column
|
Description
|
|---|
|
username
|
Username of the propagator.
|
|
userid
|
User ID of the propagator.
|
|
status
|
Status of the propagator.
|
|
created
|
Time when the propagator was registered.
|
DEFSCHEDULE View
The DEFSCHEDULE view displays information about when a job is next scheduled to be executed.
Table 10-28 DEFSCHEDULE View
|
Column
|
Description
|
|---|
|
dblink
|
Fully qualified pathname to master database site for which you have scheduled periodic execution of deferred remote procedure calls.
|
|
job
|
Number assigned to job when you created it by calling DBMS_DEFER_SYS.SCHEDULE_EXECUTION. Query the WHAT column of USER_JOBS view to determine what is executed when the job is run.
|
|
interval
|
Function used to calculate the next time to push the deferred transaction queue to destination.
|
|
next_date
|
Next date that job is scheduled to be executed.
|
|
last_date
|
Last time the queue was pushed (or attempted to push) remote procedure calls to this destination.
|
|
disabled
|
Is propagation to destination disabled?
|
|
last_txn_count
|
Number of transactions pushed during last attempt.
|
|
last_error_number
|
Oracle error number from last push.
|
|
last_error_message
|
Error message from last push.
|
DEFTRAN View
The DEFTRAN view records all deferred transactions.
Table 10-29 DEFTRAN View
|
Column
|
Description
|
|---|
|
deferred_tran_id
|
The transaction ID that enqueued the calls.
|
|
delivery_order
|
An identifier that determines the order of deferred transactions in the queue. The identifier is derived from the system commit number of the originating or copying transaction.
|
|
destination_list
|
'R' or 'D'. 'R' indicates that the destinations are determined by the REPSCHEMA view. 'D' indicates that the destinations were determined by the DEFDEFAULTDEST view or the NODE_LIST argument to the TRANSACTION, CALL, or COPY procedures.
|
|
start_time
|
The time that the original transaction was enqueued.
|
DEFTRANDEST View
The DEFTRANDEST view lists the destinations for a deferred transaction.
Table 10-30 DEFTRANDEST View
|
Column
|
Description
|
|---|
|
deferred_tran_id
|
The transaction ID of the transaction to replicate to the given database link.
|
|
dblink
|
The fully qualified database name of the destination database.
|
|
delivery_order
|
An identifier that determines the order of deferred transactions in the queue. The identifier is derived from the system commit number of the originating or copying transaction.
|
Snapshots and Snapshot Refresh Group Views
The following views provide information about snapshots and snapshot refresh groups.
SNAPSHOTS View
The SNAPSHOTS catalog view lists information about all of the snapshots in a database.
Table 10-31 SNAPSHOTS View
|
Column
|
Description
|
|---|
|
OWNER
|
Owner of the snapshot.
|
|
NAME
|
Name of the view used by users and applications for querying and updating the snapshot.
|
|
TABLE_NAME
|
Table in which the snapshot is stored (it has an extra column for the master rowid).
|
|
MASTER_VIEW
|
View of the master table, owned by the snapshot owner, used for refreshes.
|
|
MASTER_OWNER
|
Owner of the master table.
|
|
MASTER
|
Master table that this snapshot copies.
|
|
MASTER_LINK
|
Database link name to the master site.
|
|
CAN_USE_LOG
|
YES if this snapshot can use a snapshot log, NO if this snapshot is too complex to use a log.
|
|
UPDATABLE
|
`YES' indicates snapshot is updatable; `NO' indicates read-only.
|
|
LAST_REFRESH
|
Date and time at the master site of the last refresh.
|
|
ERROR
|
Number of failed attempts since last successful attempt.
|
|
TYPE
|
Type of refresh for all automatic refreshes: COMPLETE, FAST, FORCE.
|
|
NEXT
|
Date function used to compute next refresh dates.
|
|
START_WITH
|
Date function used to compute next refresh dates.
|
|
REFRESH_METHOD
|
Values used to drive a fast or complete refresh of the snapshot.
|
|
FR_OPERATIONS
|
If 'REGENERATE', then fast refresh operations have not been generated.
|
|
CR_OPERATIONS
|
If 'REGENERATE', then complete refresh operations have not been generated.
|
|
MASTER_ROLLBACK_SEG
|
Rollback segment to be used during refresh at the master.
|
|
REFRESH_GROUP
|
Group identifier for consistent refresh.
|
|
UPDATE_TRIG
|
Name of the trigger that fills in the UPDATE_LOG for an updatable snapshot.
|
|
UPDATE_LOG
|
Name of the table that logs changes to an updatable snapshot.
|
|
QUERY
|
Query used to create the snapshot.
|
Note: UPDATE_TRIG: NULL in Oracle8 because of internalized triggers; MASTER_VIEW: NULL in Oracle8, now obsolete.
REGISTERED_SNAPSHOTS View
This view describes local or remote snapshots of local tables.
Table 10-32 REGISTERED_SNAPSHOTS View
|
Column
|
Description
|
|---|
|
OWNER
|
Owner of the snapshot.
|
|
NAME
|
The name of the snapshot.
|
|
SNAPSHOT_SITE
|
Global name of the snapshot site.
|
|
CAN_USE_LOG
|
If NO, the snapshot is complex and cannot fast refresh.
|
|
UPDATABLE
|
If NO, the snapshot is read only.
|
|
REFRESH_METHOD
|
Whether the snapshot uses ROWIDs or primary key for fast refresh.
|
|
SNAPSHOT_ID
|
Identifier for the snapshot used by the master for fast refresh.
|
|
QUERY_TXT
|
Query defining the snapshot, if registered.
|
|
VERSION
|
Version of the snapshot.
|
SNAPSHOTS_LOGS View
The SNAPSHOT_LOGS view describes all the snapshot logs in the database.
Table 10-33 SNAPSHOT_LOGS View
|
Column
|
Description
|
|---|
|
LOG_OWNER
|
Owner of the snapshot log.
|
|
MASTER
|
Name of the master table for which changes are logged.
|
|
LOG_TABLE
|
Log table; with ROWIDs and timestamps of rows which changed in the master.
|
|
LOG_TRIGGER
|
An after-row trigger on the master which inserts rows into the log. NULL in Oracle 8 because of internalized triggers.
|
|
ROWIDS
|
If YES, the snapshot log records rowid information.
|
|
PRIMARY_KEY
|
If YES, the snapshot log records primary key information.
|
|
FILTER_COLUMNS
|
If YES, the snapshot log records filter column information.
|
|
CURRENT_SNAPSHOTS
|
One date per snapshot -- the date the snapshot of the master last refreshed.
|
|
SNAPSHOT_ID
|
Unique identifier of the snapshot.
|
Note: The view shows one row for each snapshot using the log. However, there is only one for all the snapshots located at the master site. To find out which logs are used, query USER_SNAPSHOT_LOGS using unique and not selecting SNAPSHOT_ID and CURRENT_SNAPSHOTS.
SNAPSHOT_REFRESH_TIMES View
The REFRESH_TIMES view lists the date and time of the last refresh.
Table 10-34 SNAPSHOT_REFRESH _TIMES View
|
Column
|
Description
|
|---|
|
OWNER
|
Owner of the snapshot.
|
|
NAME
|
Name of the snapshot view.
|
|
MASTER_OWNER
|
Owner of the master table.
|
|
MASTER
|
Name of the master table.
|
|
LAST_REFRESH
|
The date and time of the last refresh.
|
REFRESH View
The REFRESH view lists each refresh group in the database, and describes refresh intervals for each group.
Table 10-35 REFRESH View
|
Column
|
Description
|
|---|
|
ROWNER
|
Owner of the refresh group.
|
|
RNAME
|
Name of the refresh group.
|
|
REFGROUP
|
ID number of the refresh group.
|
|
IMPLICIT_DESTROY
|
Implicit delete flag. If this value is Y, Oracle deletes the refresh group after you have subtracted the last member from the group.
|
|
JOB
|
ID number of the job used to execute the automatic refresh of the snapshot group. You can use this information to query the USER_JOBS view for more information about the job.
|
|
NEXT_DATE
|
Date when the members of the group will next be refreshed.
|
|
INTERVAL
|
The function used to calculate the interval between refreshes.
|
|
BROKEN
|
Flag used to indicate a problem with the refresh group. If the value of the broken flag is Y, Oracle will not refresh the group, even if it is scheduled to be refreshed.
|
|
PUSH_DEFERRED_RPC
|
If Y, push changes to master before refresh.
|
|
REFRESH_AFTER_ERRORS
|
If Y, proceed with refresh despite errors when pushing deferred RPCs.
|
|
ROLLBACK_SEG
|
Name of rollback segment used at the snapshot site during refresh.
|
|
PURGE_OPTION
|
The method for purging the transaction queue after each push.
|
|
PARALLELISM
|
The level of parallelism for transaction propagation.
|
|
HEAP_SIZE
|
The heap size used for transaction propagation.
|
REFRESH_CHILDREN View
The REFRESH_CHILDREN view lists the members of each refresh group owned by the user, and includes information about the refresh interval for each member.
Table 10-36 REFRESH_CHILDREN View
|
Column
|
Description
|
|---|
|
OWNER
|
Owner of the refresh group member.
|
|
NAME
|
Name of the refresh group member.
|
|
TYPE
|
Type of the refresh group member; for example, SNAPSHOT.
|
|
ROWNER
|
Owner of the refresh group.
|
|
RNAME
|
Name of the refresh group.
|
|
REFGROUP
|
ID number of the refresh group.
|
|
IMPLICIT_DESTROY
|
Implicit delete flag. If this value is Y, Oracle deletes the refresh group after you have subtracted the last member from the group.
|
|
JOB
|
ID number of the job used to execute the automatic refresh of the snapshot refresh group. You can use this information to query the USER_JOBS view for more information about the job.
|
|
NEXT_DATE
|
Date when the members of the group will next be refreshed.
|
|
INTERVAL
|
The function used to calculate the interval between refreshes.
|
|
BROKEN
|
Flag used to indicate a problem with the refresh group. If the value of the broken flag is Y, Oracle will not refresh the group, even if it is scheduled to be refreshed.
|
|
PUSH_DEFERRED_RPC
|
If Y, push changes to master before refresh.
|
|
REFRESH_AFTER_ERRORS
|
If Y, proceed with refresh despite errors when pushing deferred RPCs.
|
|
ROLLBACK_SEG
|
Name of rollback segment used at the snapshot site during refresh.
|
|
PURGE_OPTION
|
The method for purging the transaction queue after each push.
|
|
PARALLELISM
|
The level of parallelism for transaction propagation.
|
|
HEAP_SIZE
|
The heap size used for transaction propagation.
|
