Data Definition Language (DDL) Syntax

Syntax Notation

Brackets [ ] Brackets enclose optional items. For example:
					[ INTERNAL ]

If you include the optional item, omit the brackets.
Vertical Bar | A vertical bar separates alternative items within brackets or braces. For example:

					[ ASC | DESC ]

Type one of the items, but omit the vertical bar and brackets.
Braces { } Braces enclose two or more alternative mandatory items. For example:

					DEFINE { procedure_name | function_name }

Type one of the items, but omit the braces and vertical bar.
Ellipsis ... An ellipsis represents an arbitrary number of one or more similar items. For example:

					CONCAT ( column1, column2, ... columnN )

where N >= 3.
Type similar items and delimiters as required, but omit the ellipsis.

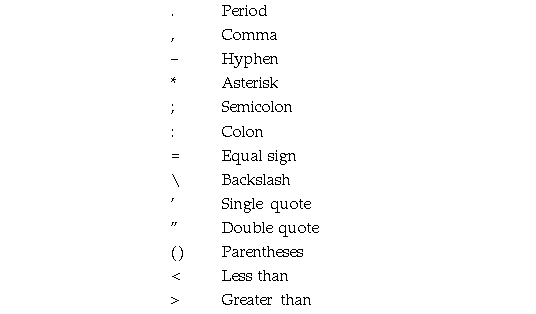

Symbols Type the following symbols precisely as they appear in the syntax notation:
For details of the notation used in the syntax diagrams in this Reference, see the PL/SQL User's Guide and Reference or the preface in the Oracle7 Server SQL Reference.

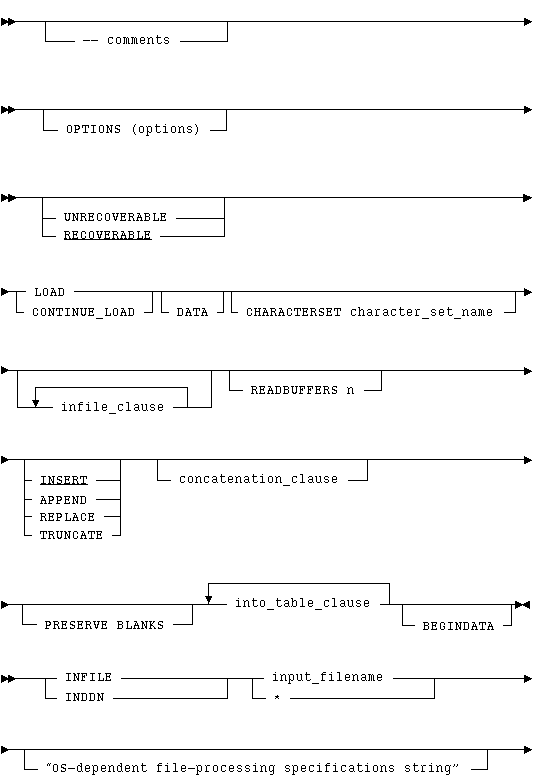

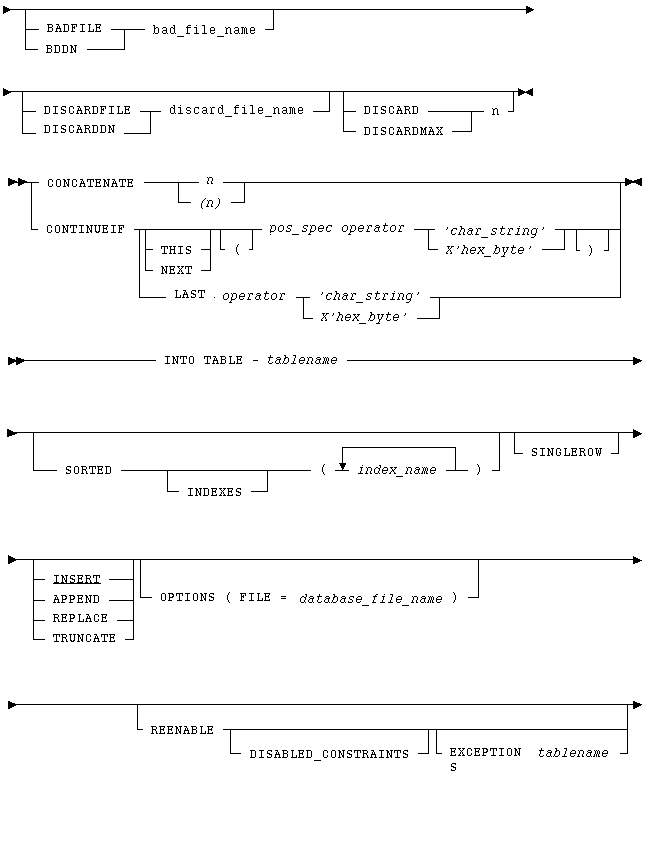

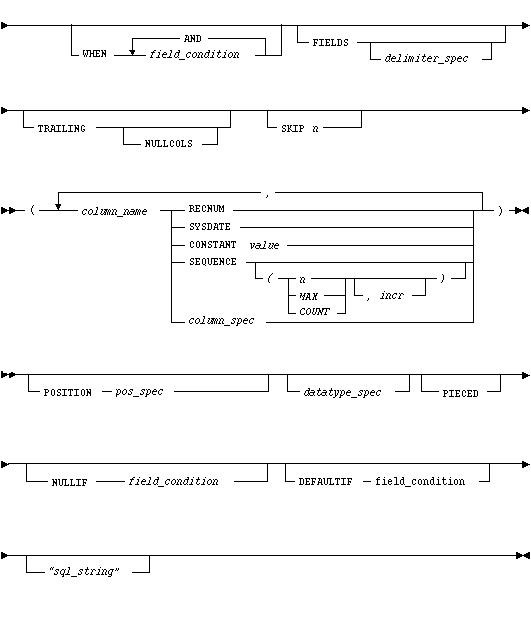

High-Level Syntax Diagrams

The following diagrams of DDL definitions are shown with certain clauses collapsed (e.g. position_spec, into_table clause, etc.)The statements are expanded and explained in more detail in later sections.
