Oracle7 Server Utilities
Expanded Clauses and Their Functionality
Position Specification
pos_spec
A position specification (pos_spec) gives the starting location for a field and, optionally, the ending location as well. A pos_spec is specified as follows:
The position must be surrounded by parentheses. The starting location may be specified as a column number, as * (next column), or *+n (next column plus an offset). The start and end locations may be separated with either a colon (:) or a dash (-).
Field Condition
field_condition
A field condition compares a named field or an area of the record to some value. When the condition evaluates to true, the specified function is performed. For example, a true condition might cause the NULLIF function to insert a NULL data value, or cause DEFAULTIF to insert a default value. The field_condition is specified as follows:
The char_string and hex_string can be enclosed in either single quotation marks or double quotation marks. The hex_string is a string of hexadecimal digits, where each pair of digits corresponds to one byte in the field. The BLANKS keyword allows you to test a field to see if it consists entirely of blanks. It is necessary when you are loading delimited data and you cannot predict the length of the field, or when using a multi-byte character set that has multiple blanks.
There must not be any spaces between the operator and the operands on either side of it. Thus,
(1)='x'
is legal, while
(1) = 'x'
generates an error.
Column Name
column_name
The column name you specify in a field condition must be one of the columns defined for the input record. It must be specified with double quotation marks if its name is a reserved word. See the section "Specifying Filenames and Database Objects" for more details.
Datatype Specification
datatype_spec

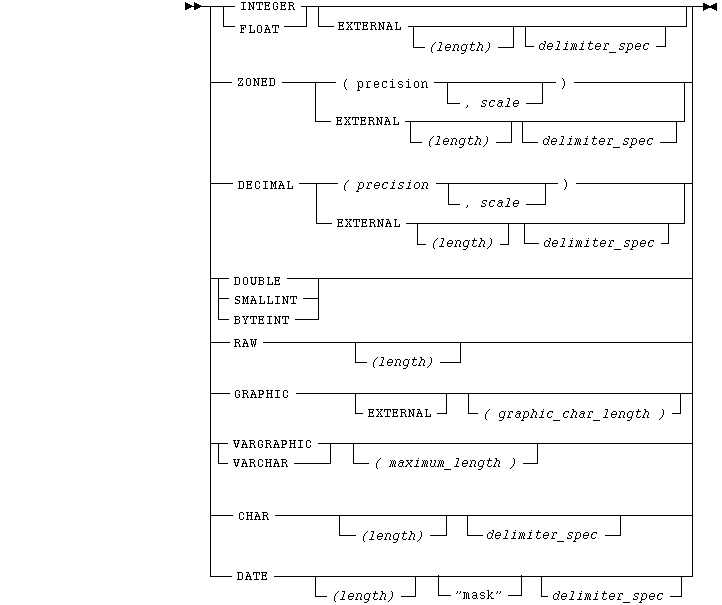

The datatype_spec tells SQL*Loader how to interpret the field in the input record. The syntax is as follows:
Precision vs. Length
precision
length
The precision of a numeric field is the number of digits it contains. The length of a numeric field is the number of byte positions on the record. The byte length of a ZONED decimal field is the same as its precision. However, the byte length of a (packed) DECIMAL field is (p+1)/2, rounded up, where p is the number's precision, because packed numbers contain two digits (or digit and sign) per byte.
Date Mask
The date mask specifies the format of the date value. For more information, see the DATE datatype .
Delimiter Specification
delimiter_spec
The delimiter_spec can specify a termination delimiter, enclosure delimiters, or a combination of the two, as shown below:
For more information, see "Specifying Delimiters" .
