What Is a Package?

A package is a database object that groups logically related PL/SQL types, objects, and subprograms. Packages usually have two parts, a specification and a body, although sometimes the body is unnecessary. The specification is the interface to your applications; it declares the types, variables, constants, exceptions, cursors, and subprograms available for use. The body fully defines cursors and subprograms, and so implements the specification.

Unlike subprograms, packages cannot be called, parameterized, or nested. Still, the format of a package is similar to that of a subprogram:

CREATE PACKAGE name AS  -- specification (visible part)
   -- public type and object declarations
   -- subprogram specifications
END [name];

CREATE PACKAGE BODY name AS  -- body (hidden part)
   -- private type and object declarations
   -- subprogram bodies
[BEGIN
   -- initialization statements]
END [name];

The specification holds public declarations, which are visible to your application. The body holds implementation details and private declarations, which are hidden from your application. As Figure 8 - 1 shows, you can think of the specification as an operational interface and of the body as a "black box":

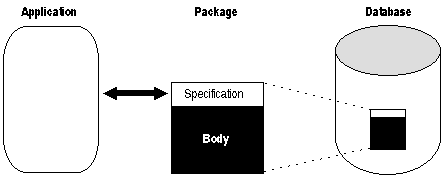

Figure 8 - 1. Package Interface

You can debug, enhance, or replace a package body without changing the interface (package specification) to the package body.

To create packages and store them permanently in an Oracle database, you use the CREATE PACKAGE and CREATE PACKAGE BODY statements, which you can execute interactively from SQL*Plus or Server Manager. For more information, see Oracle7 Server Application Developer's Guide.

In the example below, you package a record type, a cursor, and two employment procedures. Notice that the procedure hire_employee uses the database sequence empno_seq and the function SYSDATE to insert a new employee number and hire date, respectively.

CREATE PACKAGE emp_actions AS  -- specification
   TYPE EmpRecTyp IS RECORD (emp_id INTEGER, salary REAL);
   CURSOR desc_salary RETURN EmpRecTyp;
   PROCEDURE hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER);
   PROCEDURE fire_employee (emp_id NUMBER);
END emp_actions;

CREATE PACKAGE BODY emp_actions AS  -- body
   CURSOR desc_salary RETURN EmpRecTyp IS
      SELECT empno, sal FROM emp ORDER BY sal DESC;
   PROCEDURE hire_employee (
      ename  VARCHAR2,
      job    VARCHAR2,
      mgr    NUMBER,
      sal    NUMBER,
      comm   NUMBER,
      deptno NUMBER) IS
   BEGIN
      INSERT INTO emp VALUES (empno_seq.NEXTVAL, ename, job,
         mgr, SYSDATE, sal, comm, deptno);
   END hire_employee;
   PROCEDURE fire_employee (emp_id NUMBER) IS
   BEGIN
      DELETE FROM emp WHERE empno = emp_id;
   END fire_employee;
END emp_actions;

Only the declarations in the package specification are visible and accessible to applications. Implementation details in the package body are hidden and inaccessible. So, you can change the body (implementation) without having to recompile calling programs.
