We're dealing here with science, but it is science which has not yet been fully codified by scientific minds. What we have are the memoirs of poets and occult adventurers...
Anne Rice: The Tale of the Body Thief
This chapter discusses the procedural capabilities of Oracle. It includes:
For information about the dependencies of procedures, functions, and packages, and how Oracle manages these dependencies, see Chapter 19, "Oracle Dependency Management".
Oracle allows you to access and manipulate database information using procedural schema objects called PL/SQL program units. Procedures, functions, and packages are all examples of PL/SQL program units.
PL/SQL is Oracle's procedural language extension to SQL. It extends SQL with flow control and other statements that make it possible to write complex programs in it. The PL/SQL engine is the tool you use to define, compile, and execute PL/SQL program units. This engine is a special component of many Oracle products, including the Oracle server.
While many Oracle products have PL/SQL components, this chapter specifically covers the procedures and packages that can be stored in an Oracle database and processed using the Oracle server PL/SQL engine. The PL/SQL capabilities of each Oracle tool are described in the appropriate tool's documentation. For more information, see "PL/SQL" on page 14-16.
Procedures and functions are schema objects that logically group a set of SQL and other PL/SQL programming language statements together to perform a specific task. Procedures and functions are created in a user's schema and stored in a database for continued use. You can execute a procedure or function interactively using an Oracle tool, such as SQL*Plus, or call it explicitly in the code of a database application, such as an Oracle Forms or Precompiler application, or in the code of another procedure or trigger.

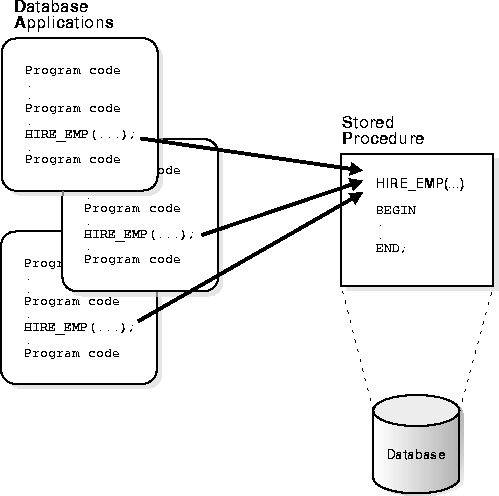

Figure 17-1 illustrates a simple procedure that is stored in the database and called by several different database applications.
Procedures and functions are identical except that functions always return a single value to the caller, while procedures do not. For simplicity, the term "procedure" as used in the remainder of this chapter means "procedure or function".

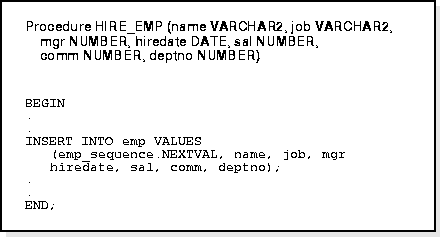

The stored procedure in Figure 17-1, which inserts an employee record into the EMP table, is shown in Figure 17-2.
All of the database applications in Figure 17-1 call the HIRE_EMP procedure. Alternatively, a privileged user might use Oracle Enterprise Manager or Server Manager to execute the HIRE_EMP procedure using the following statement:
EXECUTE hire_emp ('TSMITH', 'CLERK', 1037, SYSDATE, \ 500, NULL, 20);
This statement places a new employee record for TSMITH in the EMP table.
A package is a group of related procedures and functions, together with the cursors and variables they use, stored together in the database for continued use as a unit. Similar to standalone procedures and functions, packaged procedures and functions can be called explicitly by applications or users.

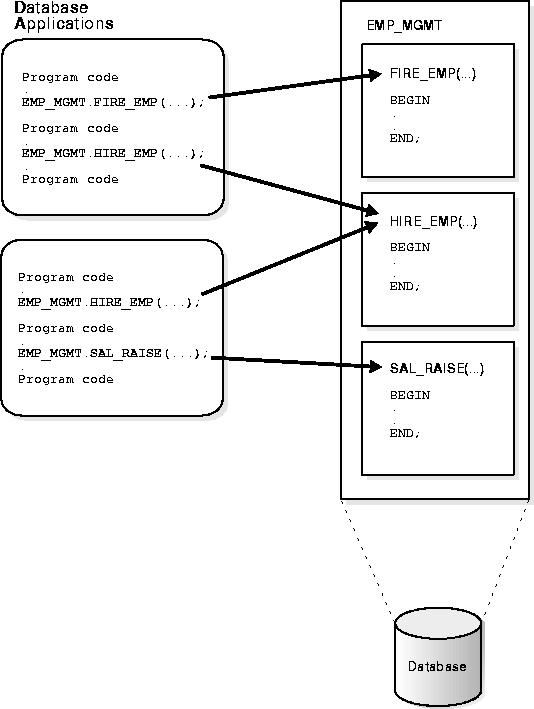

Figure 17-3 illustrates a package that encapsulates a number of procedures used to manage an employee database.
Database applications explicitly call packaged procedures as necessary. After being granted the privileges for the EMP_MGMT package, a user can explicitly execute any of the procedures contained in it. For example, the following statement might be issued using Oracle Enterprise Manager or Server Manager to execute the HIRE_EMP package procedure:
EXECUTE emp_mgmt.hire_emp ('TSMITH', 'CLERK', 1037, \ SYSDATE, 500, NULL, 20);
Packages offer several development and performance advantages over standalone stored procedures (see "Packages" on page 17-10).
A procedure or function is a schema object that consists of a set of SQL statements and other PL/SQL constructs, grouped together, stored in the database, and executed as a unit to solve a specific problem or perform a set of related tasks. Procedures and functions permit the caller to provide parameters that can be input only, output only, or input and output values. Procedures and functions allow you to combine the ease and flexibility of SQL with the procedural functionality of a structured programming language.
For example, the following statement creates the CREDIT_ACCOUNT procedure, which credits money to a bank account:
CREATE PROCEDURE credit_account (acct NUMBER, credit NUMBER) AS /* This procedure accepts two arguments: an account number and an amount of money to credit to the specified account. If the specified account does not exist, a new account is created. */ old_balance NUMBER; new_balance NUMBER; BEGIN SELECT balance INTO old_balance FROM accounts WHERE acct_id = acct FOR UPDATE OF balance; new_balance := old_balance + credit; UPDATE accounts SET balance = new_balance WHERE acct_id = acct; COMMIT; EXCEPTION WHEN NO_DATA_FOUND THEN INSERT INTO accounts (acct_id, balance) VALUES(acct, credit); WHEN OTHERS THEN ROLLBACK; END credit_account;
Notice that this sample procedure includes both SQL and PL/SQL statements.
Use the following guidelines to design and use all stored procedures:
Procedures provide advantages in the following areas.
Stored procedures can help enforce data security. You can restrict the database operations that users can perform by allowing them to access data only through procedures and functions.
For example, you can grant users access to a procedure that updates a table, but not grant them access to the table itself. When a user invokes the procedure, the procedure executes with the privileges of the procedure's owner. Users who have only the privilege to execute the procedure (but not the privileges to query, update, or delete from the underlying tables) can invoke the procedure, but they cannot manipulate table data in any other way.
Stored procedures can improve database performance in several ways:
Because stored procedures take advantage of the shared memory capabilities of Oracle, only a single copy of the procedure needs to be loaded into memory for execution by multiple users. Sharing the same code among many users results in a substantial reduction in Oracle memory requirements for applications.
Stored procedures increase development productivity. By designing applications around a common set of procedures, you can avoid redundant coding and increase your productivity.
For example, procedures can be written to insert, update, or delete rows from the EMP table. These procedures can then be called by any application without rewriting the SQL statements necessary to accomplish these tasks. If the methods of data management change, only the procedures need to be modified, not all of the applications that use the procedures.
Stored procedures improve the integrity and consistency of your applications. By developing all of your applications around a common group of procedures, you can reduce the likelihood of committing coding errors.
For example, you can test a procedure or function to guarantee that it returns an accurate result and, once it is verified, reuse it in any number of applications without testing it again. If the data structures referenced by the procedure are altered in any way, only the procedure needs to be recompiled; applications that call the procedure do not necessarily require any modifications.
A stored procedure is created and stored in the database as a schema object. Once created and compiled, it is a named object that can be executed without recompiling. Additionally, dependency information is stored in the data dictionary to guarantee the validity of each stored procedure.
As an alternative to a stored procedure, you can create an anonymous PL/SQL block by sending an unnamed PL/SQL block to the Oracle server from an Oracle tool or an application. Oracle compiles the PL/SQL block and places the compiled version in the shared pool of the SGA, but does not store the source code or compiled version in the database for reuse beyond the current instance. Shared SQL allows anonymous PL/SQL blocks in the shared pool to be reused and shared until they are flushed out of the shared pool.
In either case, moving PL/SQL blocks out of a database application and into database procedures stored either in the database or in memory, you avoid unnecessary procedure recompilations by Oracle at runtime, improving the overall performance of the application and Oracle.
Stored procedures not defined within the context of a package are called standalone procedures. Procedures defined within a package are considered a part of the package. (See "Packages" on page 17-10 for information on the advantages of packages.)
A stored procedure is dependent on the objects referenced in its body. Oracle automatically tracks and manages such dependencies. For example, if you alter the definition of a table referenced by a procedure, the procedure must be recompiled to validate that it will continue to work as designed. Usually, Oracle automatically administers such dependency management.
See Chapter 19, "Oracle Dependency Management", for more information about dependency tracking.
A PL/SQL procedure executing on an Oracle server can call an external procedure or function that is written in the C programming language and stored in a shared library. The C routine executes in a separate address space from that of the Oracle server.
|
Additional Information:
See PL/SQL User's Guide and Reference for information about external procedures. |
Packages encapsulate related procedures, functions, and associated cursors and variables together as a unit in the database.
You create a package in two parts: the specification and the body. A package's specification declares all public constructs of the package and the body defines all constructs (public and private) of the package. This separation of the two parts provides the following advantages:
The following example creates the specification and body for a package that contains several procedures and functions that process banking transactions.
CREATE PACKAGE bank_transactions (null) AS minimum_balance CONSTANT NUMBER := 100.00; PROCEDURE apply_transactions; PROCEDURE enter_transaction (acct NUMBER, kind CHAR, amount NUMBER); END bank_transactions; CREATE PACKAGE BODY bank_transactions AS /* Package to input bank transactions */ new_status CHAR(20); /* Global variable to record status of transaction being applied. Used for update in APPLY_TRANSACTIONS. */ PROCEDURE do_journal_entry (acct NUMBER, kind CHAR) IS /* Records a journal entry for each bank transaction applied by the APPLY_TRANSACTIONS procedure. */ BEGIN INSERT INTO journal VALUES (acct, kind, sysdate); IF kind = 'D' THEN new_status := 'Debit applied'; ELSIF kind = 'C' THEN new_status := 'Credit applied'; ELSE new_status := 'New account'; END IF; END do_journal_entry; PROCEDURE credit_account (acct NUMBER, credit NUMBER) IS /* Credits a bank account the specified amount. If the account does not exist, the procedure creates a new account first. */ old_balance NUMBER; new_balance NUMBER; BEGIN SELECT balance INTO old_balance FROM accounts WHERE acct_id = acct FOR UPDATE OF balance; /* Locks account for credit update */ new_balance := old_balance + credit; UPDATE accounts SET balance = new_balance WHERE acct_id = acct; do_journal_entry(acct, 'C'); EXCEPTION WHEN NO_DATA_FOUND THEN /* Create new account if not found */ INSERT INTO accounts (acct_id, balance) VALUES(acct, credit); do_journal_entry(acct, 'N'); WHEN OTHERS THEN /* Return other errors to application */ new_status := 'Error: ' || SQLERRM(SQLCODE); END credit_account; PROCEDURE debit_account (acct NUMBER, debit NUMBER) IS /* Debits an existing account if result is greater than the allowed minimum balance. */ old_balance NUMBER; new_balance NUMBER; insufficient_funds EXCEPTION; BEGIN SELECT balance INTO old_balance FROM accounts WHERE acct_id = acct FOR UPDATE OF balance; new_balance := old_balance - debit; IF new_balance >= minimum_balance THEN UPDATE accounts SET balance = new_balance WHERE acct_id = acct; do_journal_entry(acct, 'D'); ELSE RAISE insufficient_funds; END IF; EXCEPTION WHEN NO_DATA_FOUND THEN new_status := 'Nonexistent account'; WHEN insufficient_funds THEN new_status := 'Insufficient funds'; WHEN OTHERS THEN /* Returns other errors to application */ new_status := 'Error: ' || SQLERRM(SQLCODE); END debit_account; PROCEDURE apply_transactions IS /* Applies pending transactions in the table TRANSACTIONS to the ACCOUNTS table. Used at regular intervals to update bank accounts without interfering with input of new transactions. */ /* Cursor fetches and locks all rows from the TRANSACTIONS table with a status of 'Pending'. Locks released after all pending transactions have been applied. */ CURSOR trans_cursor IS SELECT acct_id, kind, amount FROM transactions WHERE status = 'Pending' ORDER BY time_tag FOR UPDATE OF status; BEGIN FOR trans IN trans_cursor LOOP /* implicit open and fetch */ IF trans.kind = 'D' THEN debit_account(trans.acct_id, trans.amount); ELSIF trans.kind = 'C' THEN credit_account(trans.acct_id, trans.amount); ELSE new_status := 'Rejected'; END IF; /* Update TRANSACTIONS table to return result of applying this transaction. */ UPDATE transactions SET status = new_status WHERE CURRENT OF trans_cursor; END LOOP; COMMIT; /* Release row locks in TRANSACTIONS table. */ END apply_transactions; PROCEDURE enter_transaction (acct NUMBER, kind CHAR, amount NUMBER) IS /* Enters a bank transaction into the TRANSACTIONS table. A new transaction is always put into this 'queue' before being applied to the specified account by the APPLY_TRANSACTIONS procedure. Therefore, many transactions can be simultaneously input without interference. */ BEGIN INSERT INTO transactions VALUES (acct, kind, amount, 'Pending', sysdate); COMMIT; END enter_transaction; END bank_transactions;
Packages allow the database administrator or application developer to organize similar routines. They also offer increased functionality and database performance.
Packages are used to define related procedures, variables, and cursors and are often implemented to provide advantages in the following areas:
Stored packages allow you to encapsulate (group) related stored procedures, variables, datatypes, and so forth in a single named, stored unit in the database. This provides for better organization during the development process.
Encapsulation of procedural constructs in a package also makes privilege management easier. Granting the privilege to use a package makes all constructs of the package accessible to the grantee.
The methods of package definition allow you to specify which variables, cursors, and procedures are
|
public |
Directly accessible to the user of a package. |
|
private |
Hidden from the user of a package. |
For example, a package might contain ten procedures. You can define the package so that only three procedures are public and therefore available for execution by a user of the package; the remainder of the procedures are private and can only be accessed by the procedures within the package.
Do not confuse public and private package variables with grants to PUBLIC, which are described in Chapter 25, "Controlling Database Access".
An entire package is loaded into memory when a procedure within the package is called for the first time. This load is completed in one operation, as opposed to the separate loads required for standalone procedures. Therefore, when calls to related packaged procedures occur, no disk I/O is necessary to execute the compiled code already in memory.
A package body can be replaced and recompiled without affecting the specification. As a result, schema objects that reference a package's constructs (always via the specification) need not be recompiled unless the package specification is also replaced. By using packages, unnecessary recompilations can be minimized, resulting in less impact on overall database performance.
A package is dependent on the objects referenced by the procedures and functions defined in its body. Oracle automatically tracks and manages such dependencies. See Chapter 19, "Oracle Dependency Management", for more information about dependency tracking.
When you create a procedure or package, Oracle
The PL/SQL compiler compiles the source code. The PL/SQL compiler is part of the PL/SQL engine contained in Oracle. If an error occurs during compilation, a message is returned.
|
Additional Information:
Information on identifying compilation errors is contained in the Oracle8 Application Developer's Guide. |
Oracle caches the compiled procedure or package in the shared pool of the system global area (SGA). This allows the code to be executed quickly and shared among many users. The compiled version of the procedure or package remains in the shared pool according to the modified least-recently-used algorithm used by the shared pool, even if the original caller of the procedure terminates his or her session. See "The Shared Pool" on page 6-6 for specific information about the shared pool buffer.
At creation and compile time, Oracle automatically stores the following information about a procedure or package in the database:
To avoid unnecessary recompilation of a procedure or package, both the parse tree and the P code of an object are stored in the database. This allows the PL/SQL engine to read the compiled version of a procedure or package into the shared pool buffer of the SGA when it is invoked and not currently in the SGA. The parse tree is used when the code calling the procedure is compiled.
All parts of database procedures are stored in the data dictionary (which is in the SYSTEM tablespace) of the corresponding database. When planning the size of the SYSTEM tablespace, the database administrator should keep in mind that all stored procedures require space in this tablespace.
When you invoke a standalone or packaged procedure, Oracle verifies user access, verifies procedure validity, and executes the procedure.
Oracle verifies that the calling user owns or has the EXECUTE privilege on the procedure or encapsulating package. The user who executes a procedure does not require access to any procedures or objects referenced within the procedure; only the creator of a procedure or package requires privileges to access referenced schema objects.
Oracle checks the data dictionary to determine whether the status of the procedure or package is valid or invalid. A procedure or package is invalid when one of the following has occurred since the procedure or package was last compiled:
A procedure is valid if it has not been invalidated by any of the above operations. If a valid standalone or packaged procedure is called, the compiled code is executed. If an invalid standalone or packaged procedure is called, it is automatically recompiled before being executed.
For a complete discussion of valid and invalid procedures and packages, recompiling procedures, and a thorough discussion of dependency issues, see Chapter 19, "Oracle Dependency Management".
The PL/SQL engine executes the procedure or package using different steps, depending on the situation:
The PL/SQL engine processes a procedure statement by statement, handling all procedural statements by itself and passing SQL statements to the SQL statement executor, as illustrated in Figure 14-2.
