Oracle7 Server Utilities

Using Export

Before Using Export

To use Export, the script CATEXP.SQL or CATALOG.SQL (which runs CATEXP.SQL) must be run after the database has been created.

Additional Information: The actual names of the script files depend on your operating system. The script file names and the method for running them are described in your Oracle operating system-specific documentation.

CATEXP.SQL or CATALOG.SQL only needs to be run once. Once run, it need not be run before future exports. The following operations are performed to prepare the database for Export.

create the necessary export views

assign all necessary privileges to the EXP_FULL_DATABASE role

assign EXP_FULL_DATABASE to the DBA role

Before running Export, ensure that there is enough disk or tape storage space to write the export file to. If there is not enough space, Export will terminate with a write-failure error. You can use table sizes to estimate the maximum space needed. Table sizes can be found in the USER_SEGMENTS view in the Oracle data dictionary (see the Oracle7 Server Administrator's Guide for more information).

Invoking Export

You can invoke Export in three ways:

Enter the command EXP username/password PARFILE=filename PARFILE is a file containing the export parameters you typically use. If you use different parameters for different databases, you can have multiple PARFILES. This is the suggested method.

Enter the command EXP username/password followed by the various parameters you intend to use. Note that the number of parameters cannot exceed the maximum length of a command line on your system.

Enter only the command EXP username/password to begin an interactive session and let Export prompt you for the information it needs. The interactive option does not provide as much functionality as the parameter-driven method. It exists primarily for backward compatibility.

The username and password can also be specified in the parameter file, although for security reasons, this is not recommended.

If you omit username/password, Export will prompt you for it.

Getting Online Help

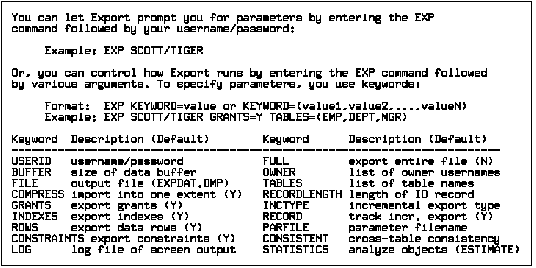

Export provides online help. Enter EXP HELP=Y on the command line to see a help screen like the one shown in Figure 1 - 2.

Figure 1 - 2. Export Help Screen

The Parameter File

The parameter file allows you to specify Export parameters in a file where they can easily be modified or reused. Create the parameter file using any flat file text editor. The command line option PARFILE=<filename> tells Export to read the parameters from the specified file rather than from the command line. For example:

EXP PARFILE=filename

EXP username/password PARFILE=filename

The syntax for parameter file specifications is:

KEYWORD=value

KEYWORD=(value) or KEYWORD=(value1, value2, ...)

The following is an example of a partial parameter file listing:

FULL=Y

FILE=DBA.DMP

GRANTS=Y

INDEXES=Y

CONSISTENT=Y

...

Additional Information: The maximum size of the parameter file may be limited and operating system file naming conventions will apply. See your Oracle operating system-specific documentation for more information.

Comments in the Parameter File

You can add comments to the parameter file by preceding them with the # sign. All characters to the right of the # sign are ignored.

Table Name Restrictions

Table names specified on the command line cannot include a # sign, unless the table name is enclosed in quotation marks. Similarly, in the parameter file, if a table has a # sign in the name, the rest of the line is interpreted as a comment unless the table name is enclosed in quotation marks.

Additional Information: Some operating systems require single vs. double quote marks, or vice versa. See your Oracle operating system-specific documentation.

For example, if the parameter file contains the line:

TABLES=(EMP#, DEPT, MYDATA)

nothing on the line after EMP# is seen as input by Export. As a result, DEPT and MYDATA are not exported.

Attention: When the name is specified in quotation marks, it is case-sensitive. The name must therefore exactly match the table name stored in the database. By default, database names are stored as uppercase.
