For more information about snapshots and replicated objects, see Oracle7 Server Distributed Systems, Volume II.

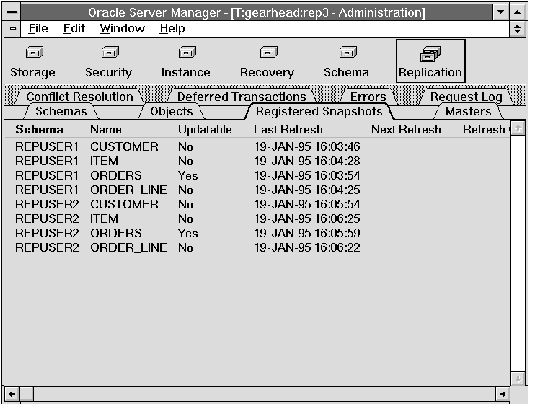

The following figure illustrates the Registered Snapshot object list.
Figure 8 - 10. Registered Snapshot Object List
| Schema | Owner of the snapshot. |
| Name | Name of the snapshot. |
| Updatable | Indicates if the snapshot is updatable or read-only. |
| Last Refresh | Time when the snapshot was last refreshed. |
| Next Refresh | Next time the snapshot will be refreshed. |
| Refresh Group | Name of the refresh group to which the snapshot belongs. |
| Table | Name of the snapshot base table. |
| Error Code | Oracle error code of the error returned the last time an automatic refresh was attempted. |
| Comment | User comments for the snapshot. |
