Oracle Server Manager User's Guide

The Recovery Folder

When you click the Recovery folder tab, the Recovery folder opens and the Recovery object list and menu appear. The Recovery object list displays information about archived log files needed for recovery. If no recovery is needed, the object list contains the message "No data found".

The following figure illustrates the Recovery object list.

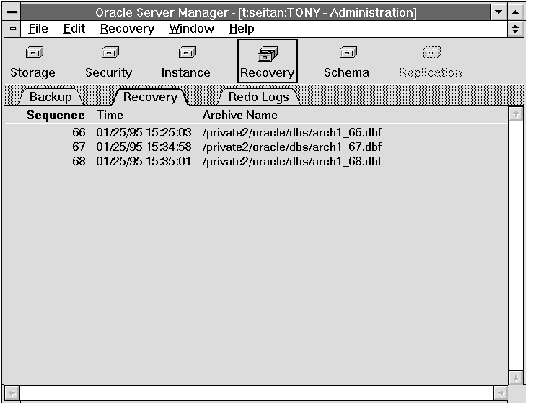

Figure 6 - 2. Recovery Object List

Recovery Object List

The columns of the Recovery object list are described below:

Sequence Sequence number of the archived log.
Time Time at which the log was archived.
Archive Name Name of the file when archived.

Applying a Log File

To apply archived redo log files during media recovery, choose Apply from the Recovery menu. The Apply Recovery Archives dialog box appears.

The following figure illustrates the Apply Recovery Archives dialog box.

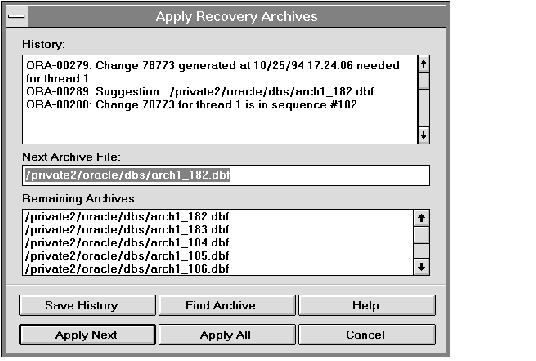

Figure 6 - 3. Apply Recovery Archives Dialog Box

The Apply Recovery Archives dialog box is described below:

History An output pane that displays prompts and status messages as recovery proceeds.
Next Archive File Text entry field that displays the next archived log file to apply.
The Next Archive File field displays the default next log file. You can edit the name of the file or enter the name of a different file to apply.
Remaining Archives Scrolling list that displays the archived redo logs that still need to be applied.
Save History Saves the contents of the History pane to a file. Displays the standard file selection dialog box for your platform and allows you to specify the file.
Find Archive Displays the standard file selection dialog box for your platform, and allows you to select a file to apply next.
Apply Next Applies the file specified in the Next Archive File field.
Apply All Applies all remaining archived redo log files. When the last log has been applied, the button's name changes to "Done".
Cancel Stops the recovery operation. Database is recovered up through the last log file applied.

Additional Information: For information about the standard file selection dialog box for your system, see your operating system-specific documentation.

Sequence	Sequence number of the archived log.
Time	Time at which the log was archived.
Archive Name	Name of the file when archived.

History	An output pane that displays prompts and status messages as recovery proceeds.
Next Archive File	Text entry field that displays the next archived log file to apply.
	The Next Archive File field displays the default next log file. You can edit the name of the file or enter the name of a different file to apply.
Remaining Archives	Scrolling list that displays the archived redo logs that still need to be applied.
Save History	Saves the contents of the History pane to a file. Displays the standard file selection dialog box for your platform and allows you to specify the file.
Find Archive	Displays the standard file selection dialog box for your platform, and allows you to select a file to apply next.
Apply Next	Applies the file specified in the Next Archive File field.
Apply All	Applies all remaining archived redo log files. When the last log has been applied, the button's name changes to "Done".
Cancel	Stops the recovery operation. Database is recovered up through the last log file applied.
