Public and Private Database Links

Public and private database links are typically created by DBAs or individual users. Global database links are typically created by a network administrator. This section discusses some topics related to public and private database links, such as creating, viewing, and dropping database links from the data dictionary. For general information on database links, see [*].

Manually Creating Database Links

The DBA and application user typically create public and private database links manually. Global database links are created automatically for every database defined in Network Manager by a network administrator or DBA.

This section discusses how public and private links are created. For information on how global database links are defined, see "Creating Global Database Links in Network Manager" [*].

The syntax for creating public and private links is:

CREATE [PUBLIC] DATABASE LINK linkname
[CONNECT TO username IDENTIFIED BY password]
USING 'service_name'

In this syntax:

[PUBLIC] Specifies a database link available to all users with the CREATE SESSION privilege. If the PUBLIC option is omitted, a private link available only to the creator is created. Note that creating a public database link requires CREATE PUBLIC DATABASE LINK privilege.
linkname Specifies the name of the database link. If the remote server is in the local server's domain, the link name does not need to include the domain name. However, if the server is in another domain, the link name must include the domain. (The domain is determined by DB_DOMAIN in the initialization parameter file).
CONNECT TO Optionally specifies a single username and password for all users of the database link to share. If the clause is omitted, the Oracle username and password of the user account using the database link will connect to the remote database server.
username Specifies a valid Oracle username on the remote database server.
password Specifies the corresponding password of the username on the remote database server.
service_name Specifies the service name defined in the TNSNAMES.ORA file or stored in Oracle Names associated with the connect descriptor for the desired database. If the remote server is in the local server's default domain, the service name does not need to include the domain name. However, if the server is in another domain, the service name must include the domain. (The default domain is determined by a parameter in the server's SQLNET.ORA file.
Before Oracle7, a database administrator could specify any linkname for a database link. However, with Oracle7 and later releases, a database link must have the same name as the global database name of the database. Remember that the service name is also the same as the global database name. Therefore, the linkname and service name are now the same. Although this may seem to make the USING clause redundant, it is still a necessary part of the syntax.

For example, the command for creating a public database link to a database that has the global database name ORCHID.HQ.ACME is as follows:

CREATE PUBLIC DATABASE LINK ORCHID.HQ.ACME
CONNECT TO scott IDENTIFIED BY tiger
USING 'ORCHID.HQ.ACME'

The following statement is the complete CREATE DATABASE LINK statement shown earlier. This example illustrates the creation of the SALES database link and the complete path that is specified for the link:

CREATE PUBLIC DATABASE LINK sales.division3.acme.com
	CONNECT TO guest IDENTIFIED BY password
	USING 'dbstring';

When a database link is created, a complete path (the remote account and the database string), a partial path (just the remote account or just the database string), or no path can be specified.

When a SQL statement references a global object name in the SALES database, the local Oracle node finds the corresponding SALES database link in the local database and attempts to establish a session in the remote database for the user GUEST/PASSWORD. The database string specified in the SALES database link definition (which is operating system and network dependent) is used to facilitate the remote connection.

Typically, it is the responsibility of each database administrator or application administrator to create the necessary database links to databases throughout the network. Database links are an implementation detail that should be completely transparent to applications and end-users of a database. It should appear to applications and users that a remote table is accessed by specifying the table's global object name, not by referencing an available database link. In fact, administrators should create location transparency for remote objects using views, synonyms, or procedures, so that applications do not explicitly reference remote data. Then, if the remote object is moved, only the synonym needs to be altered, not all applications.

Public Database Links with a Default Connection

Figure 4 - 4 shows a public database link created by the DBA user SYSTEM using the service name NY_FIN.HQ.ACME. The link is created by entering:

CREATE PUBLIC DATABASE LINK NY_FIN.HQ.ACME
USING 'NY_FIN.HQ.ACME'

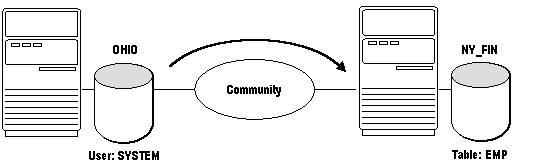

Figure 4 - 4. Public Database Link with Default Connection

Users connected to OHIO.SALES.ACME can use the NY_FIN.HQ.ACME database link to connect to NY_FIN.HQ.ACME with the same username and password they have on OHIO.SALES.ACME. To access the table on NY_FIN.HQ.ACME called EMP, any user could issue the SQL query:

SQL> SELECT * FROM EMP@NY_FIN.HQ.ACME;

Note: If the target database were in the source database's default domain, the user would not need to include the domain in the link name or service name, or in the SELECT command.

This query would initiate a connection from OHIO to NY_FIN with the current username and password to log onto NY_FIN. The query would then be processed on NY_FIN. The data available to the current user from the table EMP would be returned to OHIO. Each user creates a separate connection to the server. Subsequent queries to that database link by that user would not require an additional logon.

Public Database Links with a Specific Connection

Figure 4 - 5 shows the database link created by the user SYSTEM with the service name NY_FIN:

CREATE PUBLIC DATABASE LINK NY_FIN
CONNECT TO FINPUBLIC IDENTIFIED BY NOPASS
USING 'NY_FIN'

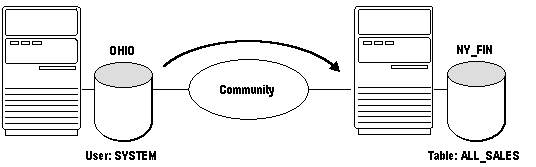

Figure 4 - 5. Public Database Link with Specific Connection

Any user connected to OHIO can use the NY_FIN database link to connect to NY_FIN with the common username/password of FINPUBLIC/NOPASS. To access the table in the FINPUBLIC account of NY_FIN called ALL_SALES, any user could issue the SQL query:

SQL> SELECT * FROM ALL_SALES@NY_FIN;

This query initiates a connection from OHIO to NY_FIN to the common account FINPUBLIC. The query is processed on NY_FIN, and data from the table ALL_SALES are returned to OHIO.

Each user creates a separate connection to the common account on the server. Subsequent queries to that database link by that user would not require an additional logon.

Connection Qualifiers

You can also define connection qualifiers to database links. Connection qualifiers provide a way to create more than one link to a given database. Alternate links are a useful way to access different accounts on the same database with different sets of access privileges. The alternate link created by a connection qualifier must include a reference to a database by its global database name (or service name).

A connection qualifier contains a qualifier name and, optionally, a username and password. To create a connection qualifier, use a statement similar to the following:

CREATE PUBLIC DATABASE LINK NY_FIN@PROFITS
CONNECT TO ACCOUNTS IDENTIFIED BY TAXES
USING 'NY_FIN'

To use the connection qualifier, you append the qualifier name to the service name of the database you want to access.

For example, the following SQL queries use three database links to the same database, using different connection qualifiers:

SELECT * FROM EMP@NY_FIN;
SELECT * FROM SCHEDULE@NY_FIN@PROFITS;
SELECT * FROM EMPSALARIES@NY_FIN@FIN;

In this example @PROFITS and @FIN are connection qualifiers.

Dropping a Database Link

You can drop a database link just as you can drop a table or view. The command syntax is:

DROP DATABASE LINK linkname;

For example, to drop the database link NY_FIN, the command would be:

DROP DATABASE LINK NY_FIN;

Examining Available Database Links

The data dictionary of each database stores the definitions of all the database links in that database. The USER/ALL/DBA_DB_LINKS data dictionary views show the database links that have been defined.

For example, assume that the local database's global name is MKTG.ACME.COM. Also assume that the following CREATE DATABASE LINK statements have been issued by the same user:

CREATE DATABASE LINK hq.acme.com
   CONNECT TO guest IDENTIFIED BY password
CREATE DATABASE LINK sales USING 'dbstring';

The following query lists all of the private database links contained in the schema associated with the current user issuing the query:

SELECT db_link, username, host
   FROM user_db_links;

For example, if the user that owns the previously created database links (HQ and SALES) issues the query above, results similar to those below are returned:

DB_LINK           USERNAME  HOST
----------------  --------  ----------
HQ.ACME.COM       GUEST
SALES.ACME.COM              dbstring

Notice that the USERNAME and HOST fields can be null if database link definitions do not indicate complete paths to the remote database.

Finding Available Database Links

Any user can query the data dictionary to determine what database links are available to that user. For information on viewing the data dictionary, see Oracle7 Server Concepts or the Oracle7 Server Administrator's Guide.

Limiting the Number of Active Database Links

You can limit the number of connections from a user process to remote databases with the parameter OPEN_LINKS. This parameter controls the number of remote connections that a single user process can use concurrently within a single SQL statement. To improve application performance, increase the value of this parameter if users need to access more databases at the same time. This allows the user to access all the required remote data without waiting for the local instance to close and open connections.
