Whenever two tables are related by a common column (or set of columns), define a PRIMARY or UNIQUE key constraint on the column in the parent table, and define a FOREIGN KEY constraint on the column in the child table, to maintain the relationship between the two tables. Depending on this relationship, you may want to define additional integrity constraints including the foreign key, as listed in the section "Relationships Between Parent and Child Tables", ![[*]](jump.gif)
.

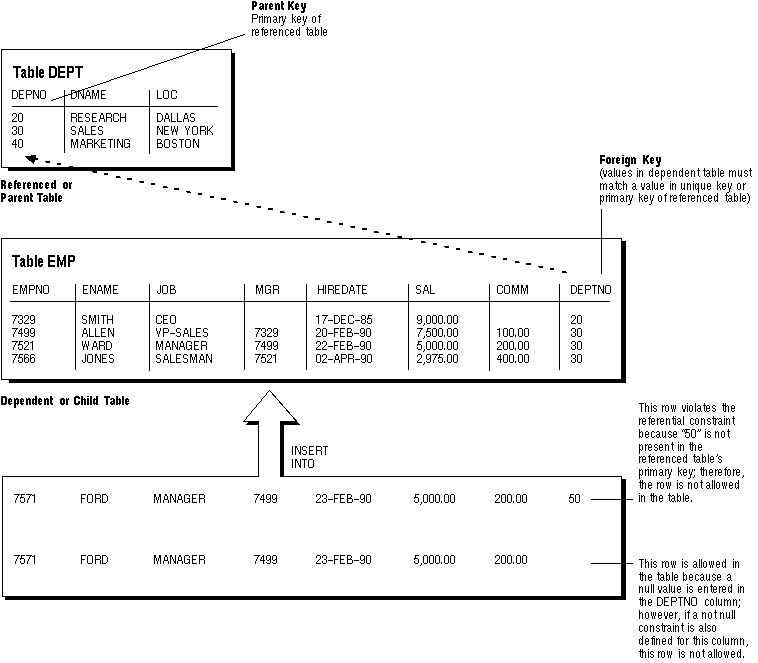

Figure 6 - 3 shows a foreign key defined on the DEPTNO column of the EMP table. It guarantees that every value in this column must match a value in the primary key of the DEPT table (the DEPTNO column); therefore, no erroneous department numbers can exist in the DEPTNO column of the EMP table.
Foreign keys can be comprised of multiple columns. However, a composite foreign key must reference a composite primary or unique key of the exact same structure; that is, the same number of columns and datatypes. Because composite primary and unique keys are limited to 16 columns, a composite foreign key is also limited to 16 columns.
Figure 6 - 3. Referential Integrity Constraints
No Constraints on the Foreign Key When no other constraints are defined on the foreign key, any number of rows in the child table can reference the same parent key value. This model allows nulls in the foreign key.
This model establishes a "one-to-many" relationship between the parent and foreign keys that allows undetermined values (nulls) in the foreign key. An example of such a relationship is shown in Figure 6 - 3 between EMP and DEPT; each department (parent key) has many employees (foreign key), and some employees might not be in a department (nulls in the foreign key).
NOT NULL Constraint on the Foreign Key When nulls are not allowed in a foreign key, each row in the child table must explicitly reference a value in the parent key because nulls are not allowed in the foreign key. However, any number of rows in the child table can reference the same parent key value.
This model establishes a "one-to-many" relationship between the parent and foreign keys. However, each row in the child table must have a reference to a parent key value; the absence of a value (a null) in the foreign key is not allowed. The same example in the previous section can be used to illustrate such a relationship. However, in this case, employees must have a reference to a specific department.
UNIQUE Constraint on the Foreign Key When a UNIQUE constraint is defined on the foreign key, one row in the child table can reference a parent key value. This model allows nulls in the foreign key.
This model establishes a "one-to-one" relationship between the parent and foreign keys that allows undetermined values (nulls) in the foreign key. For example, assume that the EMP table had a column named MEMBERNO, referring to an employee's membership number in the company's insurance plan. Also, a table named INSURANCE has a primary key named MEMBERNO, and other columns of the table keep respective information relating to an employee's insurance policy. The MEMBERNO in the EMP table should be both a foreign key and a unique key:
This model establishes a "one-to-one" relationship between the parent and foreign keys that does not allow undetermined values (nulls) in the foreign key. If you expand the previous example by adding a NOT NULL constraint on the MEMBERNO column of the EMP table, in addition to guaranteeing that each employee has a unique membership number, you also ensure that no undetermined values (nulls) are allowed in the MEMBERNO column of the EMP table.

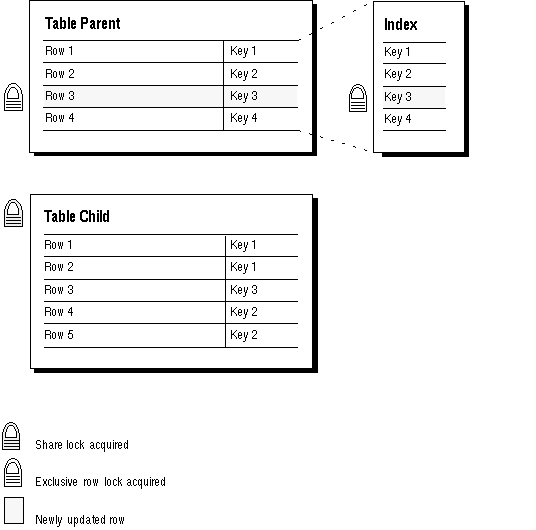

No Index on the Foreign Key Figure 6 - 4 illustrates the locking mechanisms used by Oracle when no index is defined on the foreign key and when rows are being updated or deleted in the parent table. Inserts into the parent table do not require any locks on the child table.
Notice that a share lock of the entire child table is required until the transaction containing the DELETE statement for the parent table is committed. If the foreign key specifies ON DELETE CASCADE, the DELETE statement results in a table-level share-subexclusive lock on the child table. A share lock of the entire child table is also required for an UPDATE statement on the parent table that affects any columns referenced by the child table. Share locks allow reading only; therefore, no INSERT, UPDATE, or DELETE statements can be issued on the child table until the transaction containing the UPDATE or DELETE is committed. Queries are allowed on the child table.
This situation is tolerable if updates and deletes can be avoided on the parent.
INSERT, UPDATE, and DELETE statements on the child table do not acquire any locks on the parent table; although INSERT and UPDATE statements will wait for a row-lock on the index of the parent table to clear.
Figure 6 - 4. Locking mechanisms Used When No Index Is Defined on the Foreign Key

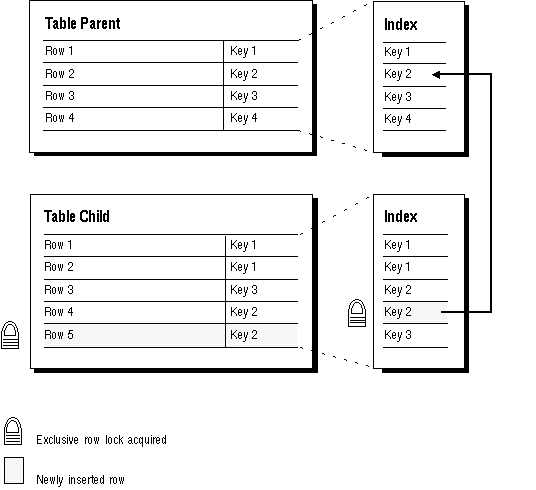

Index on the Foreign Key Figure 6 - 5 illustrates the locking mechanisms used by Oracle when an index is defined on the foreign key, and new rows are inserted, updated or deleted in the child table.
Notice that no table locks of any kind are acquired on the parent table or any of its indexes as a result of the insert, update or delete. Therefore, any type of DML statement can be issued on the parent table, including inserts, updates, deletes, and queries.
This situation is preferable if there is any update or delete activity on the parent table while update activity is taking place on the child table. Inserts, updates, and deletes on the parent table do not require any locks on the child table; although updates and deletes will wait for row-level locks on the indexes of the child table to clear.
Figure 6 - 5. Locking mechanisms Used When Index Is Defined on the Foreign Key
If the child table specifies ON DELETE CASCADE, deletes from the parent table may result in deletes from the child table. In this case, waiting and locking rules are the same as if you deleted from the child table yourself after performing the delete from the parent table.
