Oracle7 Server Concepts
The Relationships Between Data Blocks, Extents, and Segments
Oracle allocates database space for all data in a database. The units of logical database allocation are data blocks, extents, and segments. The following illustration shows the relationships between these data structures:

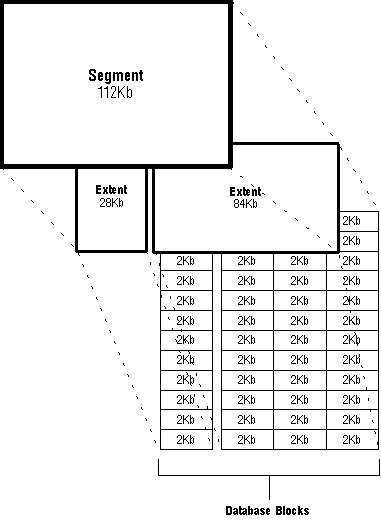

Figure 3 - 1. The Relationship Among Segments, Extents, and Data Blocks
Data Blocks
At the finest level of granularity, Oracle stores data in data blocks (also called logical blocks, Oracle blocks, or pages). One data block corresponds to a specific number of bytes of physical database space on disk. You set the data block size for every Oracle database when you create the database. This data block size should be a multiple of the operating system's block size within the maximum limit. Oracle data blocks are the smallest units of storage that Oracle can use or allocate.
In contrast, all data at the physical, operating system level is stored in bytes. Each operating system has what is called a block size. Oracle requests data in multiples of Oracle blocks, not operating system blocks. Therefore, you should set the Oracle block size to a multiple of the operating system block size to avoid unnecessary I/O.
Extents
The next level of logical database space is called an extent. An extent is a specific number of contiguous data blocks that is allocated for storing a specific type of information.
Segments
The level of logical database storage above an extent is called a segment. A segment is a set of extents that have been allocated for a specific type of data structure, and that all are stored in the same tablespace. For example, each table's data is stored in its own data segment, while each index's data is stored in its own index segment.
Oracle allocates space for segments in extents. Therefore, when the existing extents of a segment are full, Oracle allocates another extent for that segment. Because extents are allocated as needed, the extents of a segment may or may not be contiguous on disk. The segments also can span files, but the individual extents cannot.
